Product Information

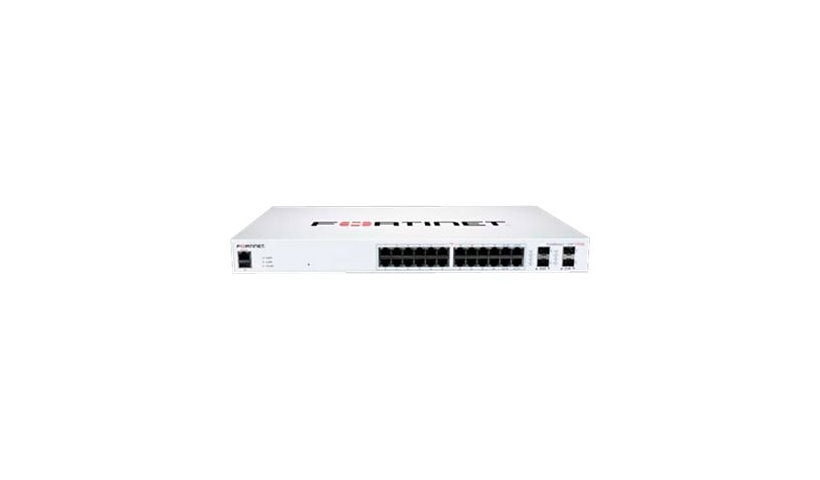

The Fortinet FortiSwitch 124F-POE is a managed Gigabit switch with PoE+ and four 10G SFP+ uplinks. It shares a 185 W PoE budget, offers 128 Gbps of switching capacity and can be managed from a FortiGate through FortiLink.
Key Features
- Gigabit RJ-45 ports with PoE+
- 4 x 10G SFP+ uplinks
- 185 W PoE budget
- 128 Gbps switching, 190 Mpps
- 802.1x, DHCP snooping, DAI
- Rack mount, side-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 124F-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Authentication Method: RADIUS
Performance: Latency: < 1 µs, Packets per second: 190 Mpps, Switching capacity: 128 Gbps
Capacity: Link aggregation groups: 8, VLANs supported: 4000
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Features: 2MB packet buffer, 802.1x authentication, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), DHCP relay, DHCP snooping, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flow control, IGMP snooping, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Storm Control, STP BPDU Guard, STP Root Guard, Trivial File Transfer Protocol (TFTP) support, VLAN Tagging
Connectivity
Ports: 12
Port Quantity: 12
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x console RJ-45 management, 24 x 1000Base-T RJ-45 PoE+, 4 x 10Gbit LAN SFP+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 237.4 watt
PoE Budget: 185 watt
Memory and Processor
RAM Installed: 512 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 64 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Side to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 13 inch
Depth: 10.2 inch
Weight: 7.85 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
