Product Information

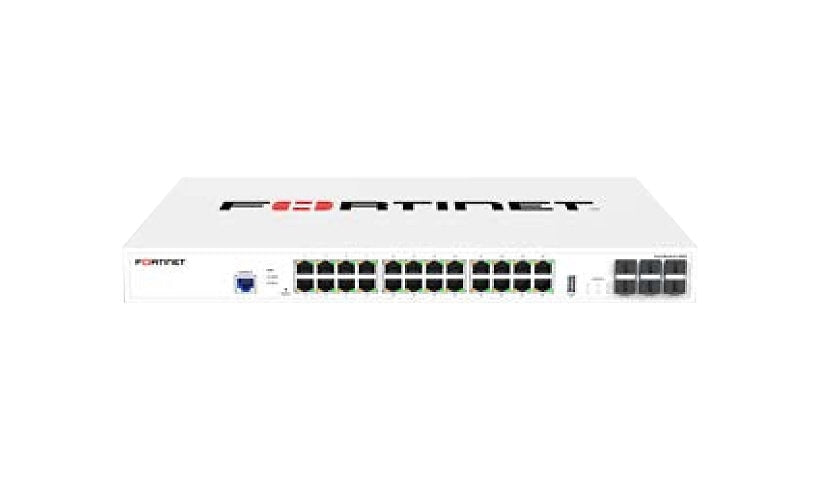

Fortinet's FortiSwitch 124G-FPOE is a managed switch with 16 ports at 2.5GbE delivering PoE+ and eight 2.5GbE ports delivering PoE++ up to 90 W, plus six 1/10G SFP+ uplinks. It shares a 780 W PoE budget and offers 240 Gbps of switching capacity. Airflow runs side to back.
Key Features
- 16 x 2.5GbE RJ-45 PoE+ ports (30 W)
- 8 x 2.5GbE RJ-45 PoE++ ports (90 W)
- 6 x 1/10G SFP+ uplinks
- 780 W PoE budget
- 240 Gbps switching, 355 Mpps
- 1 GB RAM, 256 MB flash
- Rack mount, side-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 124G-FPOE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 2.5 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, MIB, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, TCP/IP, Telnet, TFTP, UDP, Web GUI
Routing Protocol: BGP, BGP-4, IGMP, IS-IS, MSTP, OSPF, OSPFv2, OSPFv3, RIP, RIP-2, RSTP, Static IP routing, STP, VRRP, VRRPv3
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH)
Performance: Latency: < 1 µs, Packet buffer size: 2 MB, Packets per second: 355 Mpps, Switching capacity: 240 Gbps
Capacity: ACL: 640, Link aggregation groups: 8, Spanning Tree Protocol instances: 32, Total link aggregation groups: 12, VLANs supported: 4000
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Features: 802.1x authentication, Access Control List (ACL) support, ARP support, Auto-discovery, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Automatic topology detection, Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Cloud managed, DHCP snooping, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Energy-Efficient Ethernet (EEE), Explicit Congestion Notification (ECN), Flow control, FortiLink Mode, FTP support, High Availability, IGMP snooping, IP source guard, IP-MAC binding, IPFIX, IPv6 RA Guard, Link Aggregation Control Protocol (LACP), Link Aggregation Group (LAG), LLDP, Loop Guard, MAC Access Bypass (MAB), Media Endpoint Discovery (LLDP-MED), Multichassis link aggregation (MC-LAG), NetFlow, Network Access Control (NAC), Port mirroring, Port trunking, Private VLAN, Quality of Service (QoS), Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), Reset button, SD-WAN support, sFlow, Smart Fan, SNMP traps, Storm Control, STP BPDU Guard, STP Root Guard, Switched Port Analyzer (SPAN), Time Domain Reflectometry (TDR), Type of Service (ToS), Virtual Extensible LAN (VXLAN), VLAN support, VLAN Tagging, Wake On LAN (WOL), Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Port Quantity: 18
Port Type: 10/100/1000/2.5G (PoE+)
Ports (2nd) Quantity: 8
Ports Type (2nd): 10/100/1000/2.5G (PoE++)
Ports (3rd) Quantity: 6
Interface Provided: 1 x console RJ-45, 16 x 2.5GBase-T RJ-45 PoE+ - 30 W, 6 x 1/10GBase-X SFP+, 8 x 2.5GBase-T RJ-45 PoE++ - 90 W
Power Over Ethernet (PoE): PoE+
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 880 watt
PoE Budget: 780 watt
Memory and Processor
RAM Installed: 1 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Side to back airflow
Status Indicators: Alarm, Bluetooth, Bluetooth Low Energy (BLE), PoE max, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 12.2 inch
Weight: 10.71 lbs
Certifications and Listing
Compliant Standards: IEEE 1588-2008, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI, CB, FCC, ICES, IP20, RCM, RoHS 2, UKCA, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
