Product Information

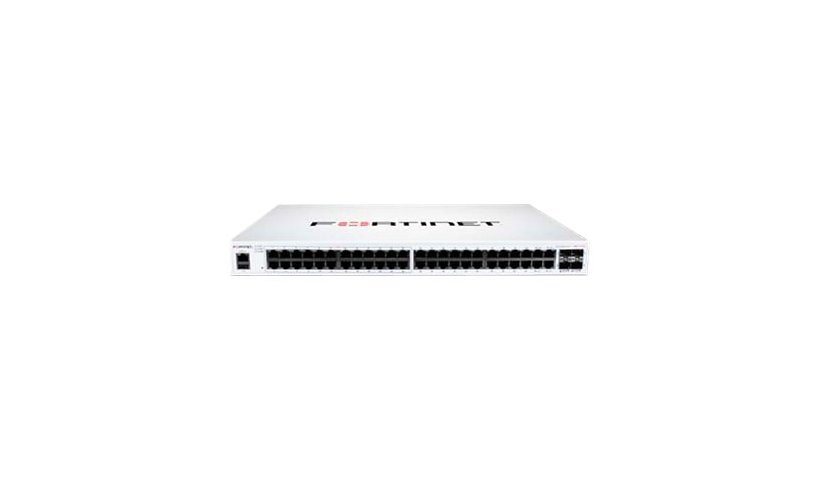

The Fortinet FortiSwitch 148F-POE is a 1U managed switch with 48 Gigabit RJ-45 ports, 24 of them PoE+, and four 10G SFP+ uplinks. It shares a 370 W PoE budget and can be managed on its own or from a FortiGate through FortiLink. Switching capacity is 176 Gbps, and airflow runs side to back.
Key Features
- 48 x Gigabit RJ-45 ports (24 PoE+, 24 non-PoE)
- 4 x 10G SFP+ uplinks
- 370 W PoE budget
- 176 Gbps switching capacity
- Managed: VLAN, LACP, 802.1x, DHCP snooping, IGMP snooping
- 512 MB RAM, 64 MB flash
- 1U rack mount, side-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 148F-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RADIUS, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: IGMP, MSTP, Policy-based routing (PBR), RSTP, STP
Authentication Method: RADIUS, Secure Shell (SSH)
Performance: Latency: < 1 µs, Packets per second: 260 Mbps, Switching capacity: 176 Gbps
Capacity: Buffer capacity (MB): 2, Link aggregation groups: 8, Total link aggregation groups: 128, VLANs supported: 4000
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Features: 802.1x authentication, Application Visibility and Control (AVC), Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Guard, DHCP snooping, Firewall protection, Flow control, IGMP snooping, IP forwarding support, LACP support, Link Aggregation, Link Aggregation Group (LAG), LLDP support, LLDP-MED, MAC Access Bypass (MAB), Management Information Base (MIB) II, Port mirroring, SNTP support, Storm Control, STP Root Guard, Syslog support, VLAN Tagging
Connectivity
Ports: 48
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 24
Ports Type (2nd): 10/100/1000 (PoE+)
Ports (3rd) Quantity: 4
Interface Provided: 1 x serial (console) RJ-45, 4 x 10GBase-X SFP+, 48 x 1000Base-T RJ-45 24 ports (PoE+)
Power Over Ethernet (PoE): PoE+
QSFP Slots: 10 Gigabit SFP+
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 474.8 watt
PoE Budget: 370 watt
Memory and Processor
RAM Installed: 512 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 64 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Side to back airflow
Status Indicators: Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 12.2 inch
Weight: 10.32 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
