Product Information

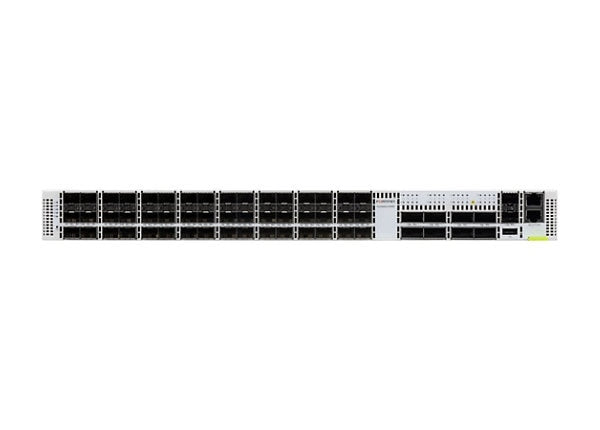

The Fortinet FortiSwitch 2048F is a campus core and data center switch with 48 SFP28 ports at 1/10/25G, eight QSFP28 ports at 40/100G and two 1/10G SFP+ ports. It offers 4 Tbps of switching capacity with two hot-plug power supplies installed for 1+1 redundancy. Airflow runs front to back.
Key Features
- 48 x 1/10/25G SFP28 ports
- 8 x 40/100G QSFP28 ports
- 2 x 1/10G SFP+ ports
- 4 Tbps switching capacity
- 8 GB RAM, 8 GB flash, stackable
- 2 hot-plug power supplies, 1+1 redundant
- Rack mount, front-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 2048F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, MIB, RMON, RMON 1, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: BGP, IS-IS, OSPF, PIM-SSM, RIP, Static IP routing, VRRP, VXLAN
Authentication Method: RADIUS, Secure Shell (SSH)
Performance: Latency: < 1 µs, Packet buffer size: 32 Mbit, Packets per second: 1310 Mpps, Switching capacity (64-byte packet size): 4000 Mpps, Switching capacity: 4000 Gbps
Capacity: ACL entries: 3000, Host entries: 16000, IPv4 routes: 16000, IPv6 routes: 8000, MAC addresses: 144000, Maximum aggregation groups: 48, Multicast routes: 8000, Queues per port: 8, VLANs supported: 4000
MAC Address Table Size: 128K entries
Jumbo Frame Support: Yes
Stackable: Stackable
Features: ACL support, ALERT notification, Bidirectional Forwarding Detection (BFD), DHCP relay, DHCP server, DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic packet capture, Encapsulated Remote SPAN (ERSPAN), Equal-Cost Multipath (ECMP), Explicit Congestion Notification (ECN), High Availability, IGMP proxy, IGMP querier, IGMP snooping, Ingress Access Control List (ACL), IP source guard, IP-MAC binding, IPv6 support, LLDP Neighbor Discovery, LLDP support, LLDP-MED, Load balancing, MAC Access Bypass (MAB), MACsec support, MLD proxy, MLD querier, MLD snooping, Multi-Chassis Link Aggregation (MLAG), Policy based routing, Port mirroring, RA guard, RADIUS support, Remote Switch Port Analyzer (RSPAN), sFlow, SNTP support, SPAN mode, Static routing, Sticky MAC, Syslog support, Unicast Reverse Path Forwarding (URPF), Virtual Extensible LAN (VXLAN), Virtual Routing and Forwarding (VRF), Wake On LAN (WOL)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1/10/25 Gigabit SFP28
Ports (2nd) Quantity: 2
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Ports (3rd) Quantity: 8
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console RJ-45 management, 2 x 1/10GBase-X SFP+, 48 x 1/10/25GBase-X SFP28, 8 x 40/100GBase-X QSFP28
QSFP Slots: 40/100 Gigabit QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Supplies Installed: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Min Storage Temperature: -13 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 18.1 inch
Weight: 21.78 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
ENERGY STAR Certified: No
