Product Information

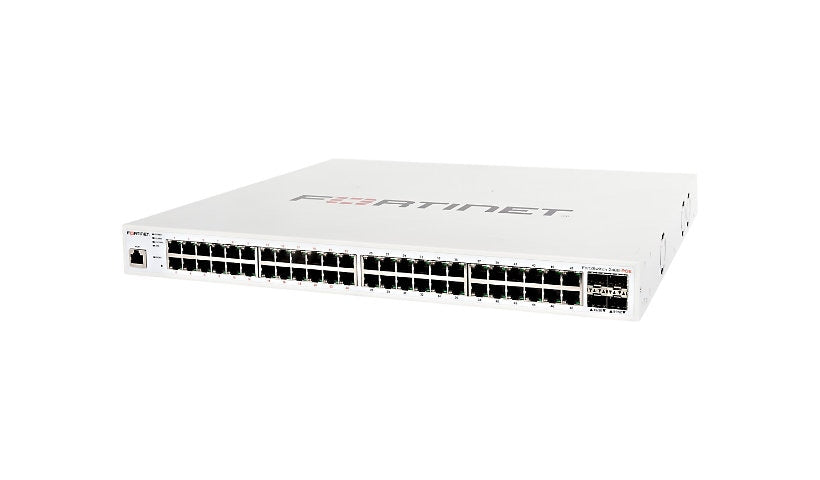

The Fortinet FortiSwitch 248E-FPOE is a Layer 3 secure access switch with 48 Gigabit PoE+ ports and four Gigabit SFP ports. It provides a 740 W PoE budget and 104 Gbps of switching capacity, and is managed through a FortiGate for a single view of the network.
Key Features
- 48 x Gigabit RJ-45 PoE+ ports
- 4 x Gigabit SFP ports
- 740 W PoE budget
- 104 Gbps switching, 155 Mpps
- Layer 3, DAI, IP-MAC binding, BFD
- Rack mount, internal power supply
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 248E-FPOE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: OSPFv2, RIP-2, VRRP
Authentication Method: RADIUS
Performance: Latency: 1 µs, Packet transfer capability: 155 Mpps, Switching capacity: 104 Gbps
Capacity: ACL entries: 512, Host entries: 4000, Link aggregation groups: 26, Link aggregation groups: 8, MSTP instances: 15, Routing entries: 64, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 16000 entries
Jumbo Frame Support: Yes
Features: 1.5MB packet buffer, Auto-negotiation, Bidirectional Forwarding Detection (BFD), DHCP relay, DHCP snooping, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Flow control, IGMP snooping, IP-MAC binding, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Management Information Base (MIB), Multi-Chassis Link Aggregation (MLAG), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Private VLAN, Rapid Spanning Tree Protocol (RSTP) support, Root Guard, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Static routing, Storm Control, Tagged VLAN, Time Domain Reflectometry (TDR), Type of Service (ToS)
Connectivity
Ports: 52
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x console RJ-45, 1 x management RJ-45, 4 x Gigabit LAN SFP, 48 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 47.7 watt
PoE Budget: 740 watt
Memory and Processor
RAM Installed: 512 megabyte
Flash Memory Installed: 128 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 16.1 inch
Weight: 13.45 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
