Product Information

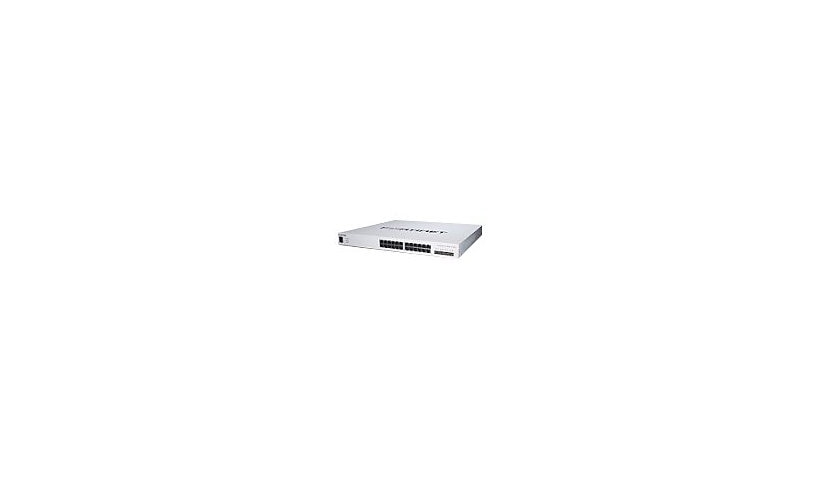

The Fortinet FortiSwitch 424E-POE is a Layer 3 switch with 24 Gigabit PoE+ ports and four 1/10G SFP+ uplinks. It provides 128 Gbps of throughput and connects to a FortiGate through FortiLink for unified management.
Key Features
- 24 x Gigabit RJ-45 PoE+ ports
- 4 x 1/10G SFP+ uplinks
- 128 Gbps, 204 Mpps
- Layer 3, LACP, IGMP snooping, FortiLink
- 1 GB RAM, 256 MB flash
- Rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 424e
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: Bidirectional Forwarding Detection (BFD), OSPFv2, RIP-2, VRRP
Authentication Method: RADIUS
Performance: Latency: 1 µs, Packets per second: 204 Mpps, Switching throughput: 128 Gbps
Capacity: ACL entries: 512, Host entries: 4000, Link aggregation groups: 8, MSTP instances: 15, Routing entries: 64, Virtual interfaces (VLANs): 4000
Jumbo Frame Support: Yes
Features: DHCP client, DHCP relay, DiffServ Code Point (DSCP) support, Flow control, IGMP snooping, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Tagged VLAN, Telnet server, Type of Service (ToS)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 1 x management RJ-45, 1 x USB 2.0 Type A, 24 x 1000Base-T RJ-45, 4 x 1/10Gbit LAN SFP+ uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Memory and Processor
RAM Installed: 1 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 9.8 inch
Certifications and Listing
Compliant Standards: C-Tick, CB, cUL, FCC Part 15 A, RoHS, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
