Product Information

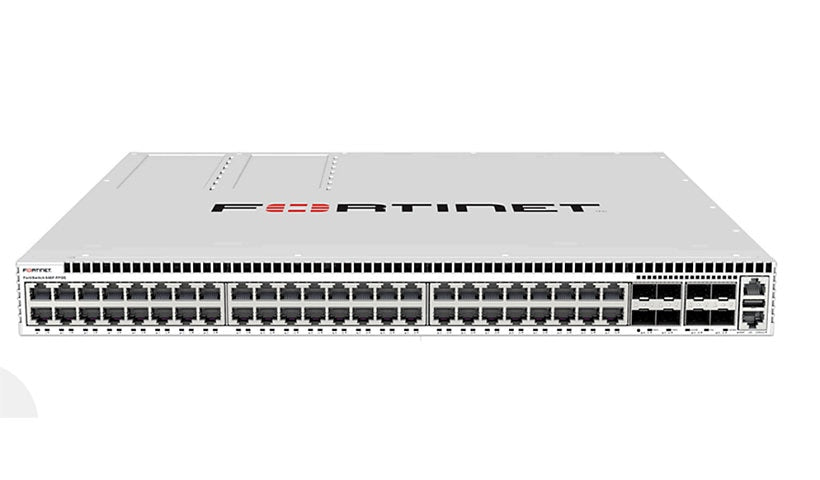

Fortinet's FortiSwitch 648F-FPOE gives you a Layer 3 switch with 32 ports at 1/2.5GbE delivering PoE++ up to 90 W each, 16 ports at up to 5GbE and eight 1/10/25G SFP28 uplinks. It provides an 1,800 W PoE budget, 720 Gbps of switching capacity and zero-touch deployment through FortiLink. Two hot-plug power supplies are installed.
Key Features
- 32 x 1/2.5GbE RJ-45 PoE++ (802.3bt), up to 90 W each
- 16 x 100M/1G/2.5G/5G RJ-45 ports
- 8 x 1/10/25G SFP28/SFP+ uplinks
- 1,800 W PoE budget, 720 Gbps switching
- Layer 3, MACsec, FortiLink, zero-touch deployment
- 4 GB RAM, 2 hot-plug power supplies
- Rack mount, front-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 648F-FPOE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: 5 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, Telnet, TFTP
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IS-IS, MLD, MSTP, OSPF, OSPFv2, PIM-SSM, Policy-based routing (PBR), RIP-2, URPF, VRRP
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS
Performance: Latency: < 1 µs, Packets per second: 1071 Mpps, Switching capacity: 720 Gbps
Capacity: ACL: 36000, Host IPv4 routes: 192000, IP multicast entries: 12000, IPv4 routing entries: 16000, Link aggregation groups: 56, Packet buffer size: 8 MB, Spanning Tree Protocol instances: 32, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 64K entries
Jumbo Frame Support: Yes
Features: 802.1x authentication, Access Control List (ACL) support, ARP inspection, Auto-negotiation, Automatic Media-Dependent Interface Crossover (MDIX), Automatic topology detection, DHCP relay, DHCP server, DHCP snooping, Encapsulated Remote SPAN (ERSPAN), FTP support, High Availability, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IP-MAC binding, Loop Guard, MAC Access Bypass (MAB), MAC black/whitelist, MACsec support, Media Dependent Interface (MDI), MLD proxy, MLD querier, MLD snooping, Network Access Control (NAC), Port mirroring, Port trunking, Precision Time Protocol (PTP), Private VLAN, Quality of Service (QoS), RA guard, Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), sFlow, SNTP support, SPAN mode, Storm Control, STP BPDU Guard, STP Root Guard, Time Domain Reflectometry (TDR), VLAN / port mapping, VLAN support, Wake On LAN (WOL)
Connectivity
Ports: 48
Port Quantity: 32
Port Type: 10/100/1000/2.5G (PoE++)
Ports (2nd) Quantity: 16
Ports Type (2nd): 100/1000/2.5G/5G
Ports (3rd) Quantity: 8
Interface Provided: 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 16 x 100/1000/2.5G/5GBase-T RJ-45, 32 x 1/2.5GBase-T RJ-45 PoE++ - 90 W, 8 x 1/10/25GBase-X SFP28/SFP+
Power Over Ethernet (PoE): PoE++
QSFP Slots: 10 Gigabit / 25 Gigabit SFP+ / SFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 1200 watt
PoE Budget: 1800 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Status Indicators: Alarm, Fan, Link/activity/speed, PoE activity, Power
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 13.8 inch
Weight: 17.27 lbs
Included Items
Included Accessories: 4 rubber feet
Cables: 1 x USB to RJ-45 console cable, 2 x AC power cable
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
