Product Information

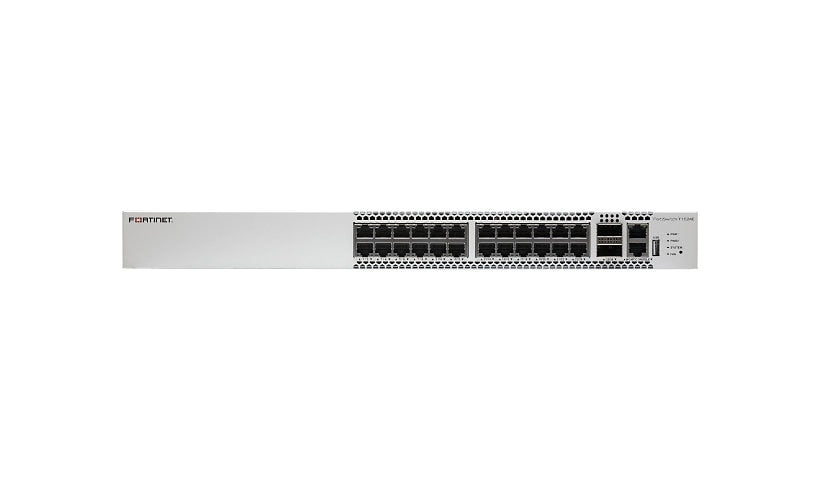

The Fortinet FortiSwitch T1024E is a data center switch with 24 multigigabit RJ-45 ports at 1/2.5/5/10G and two 100G QSFP28 uplinks. It offers 880 Gbps of switching capacity, cut-through switching and a 16 MB packet buffer. Two hot-plug power supplies are installed for 1+1 redundancy.
Key Features
- 24 x 1/2.5/5/10GBase-T RJ-45 ports
- 2 x 100G QSFP28 uplinks
- 880 Gbps switching, 1,309 Mpps
- 16 MB buffer, 8 GB RAM, stackable
- 2 hot-plug power supplies, 1+1
- Rack mount, front-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: T1024E
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), ECMP, IS-IS, OSPFv2, PIM-SSM, RIP-2, Static IPv4 routing, Static IPv6 routing, VRRP
Authentication Method: RADIUS, Secure Shell (SSH)
Performance: Latency: 1 µs, Packets per second: 1309 Mpps, Switching capacity: 880 Gbps
Capacity: ACL entries: 18000, Host entries: 24000, Maximum aggregation groups: 24, Packet buffer size: 8 MB, Queues per port: 8, Routing entries: 24000, VLANs supported: 4000
MAC Address Table Size: 64K entries
Jumbo Frame Support: Yes
Stackable: Stackable
Features: 16MB packet buffer, 802.1x authentication, Access Control List (ACL) support, Auto-negotiation, Back Pressure Support, Black list, Cut-through, DHCP client, DHCP relay, DHCP snooping, DSCP based ToS, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Firewall protection, Flow control, FortiLink Mode, High Availability, IGMP snooping, IP forwarding support, IP-MAC binding, Link Aggregation Control Protocol (LACP), Link Aggregation Group (LAG), LLDP-MED, MAC Access Bypass (MAB), MAC based VLAN, Multichassis link aggregation (MC-LAG), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Port trunking, Port-based VLAN, Priority-based flow control, Private VLAN, Rapid Spanning Tree Protocol (RSTP) support, RESTful APIs, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Storm Control, STP Root Guard, Syslog support, Telnet server, Type of Service (ToS), VLAN Tagging, White list
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 1/2.5/5/10GBase-T
Ports (2nd) Quantity: 2
Ports Type (2nd): 100 Gigabit QSFP28
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console RJ-45 management, 2 x 100Gbit LAN QSFP28, 24 x 1/2.5/5/10GBase-T
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 128 watt
Power Supplies Installed: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -13 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 18.1 inch
Weight: 14.42 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3u, IEEE 802.3z
ENERGY STAR Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
