Product Information

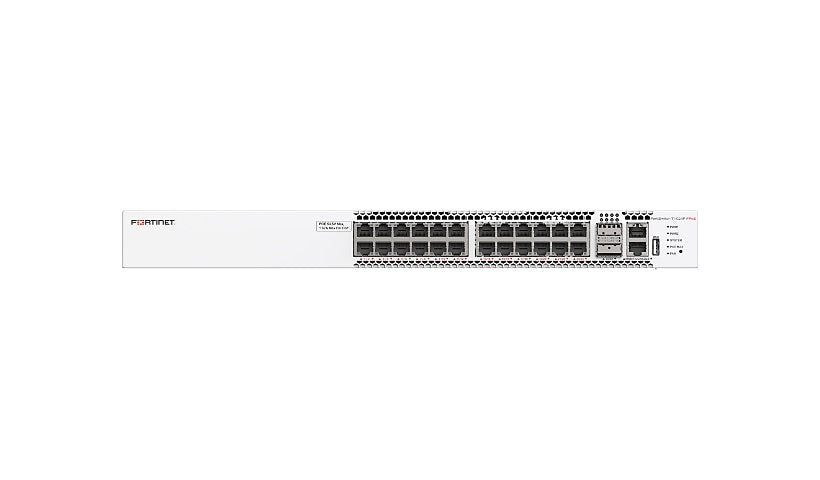

Fortinet's FortiSwitch T1024F-FPOE is a Layer 3 managed switch with 24 RJ-45 ports at 1/2.5GbE, all PoE++, and two QSFP28 uplinks at up to 100GbE. It offers a 1,440 W PoE budget, 880 Gbps of switching capacity and FortiLink management from a FortiGate. Two hot-plug power supplies are installed.
Key Features
- 24 x 1/2.5GbE RJ-45 PoE++ ports
- 2 x 40/100G QSFP28 uplinks
- 1,440 W PoE budget
- 880 Gbps switching, 1,309 Mpps
- Layer 3, FortiLink management
- 8 GB RAM, 2 hot-plug power supplies
- Rack mount, front-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: T1024F-FPOE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RMON, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, Telnet, TFTP
Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IS-IS, MLD, MSTP, OSPF, OSPFv2, PIM-SSM, Policy-based routing (PBR), RIP-2, URPF, VRRP
Performance: Latency: < 1 µs, Packets per second: 1309 Mpps, Switching capacity: 880 Gbps
Capacity: ACL: 3000, IP multicast entries: 8000, IPv4 routing entries: 24000, IPv6 routing entries: 12000, Link aggregation groups: up to 24, Packet buffer size: 8 MB, Spanning Tree Protocol instances: 64, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 64K entries
Jumbo Frame Support: Yes
Features: 802.1x authentication, Access Control List (ACL) support, ARP inspection, Auto-negotiation, Automatic Media-Dependent Interface Crossover (MDIX), Automatic topology detection, DHCP relay, DHCP server, DHCP snooping, Encapsulated Remote SPAN (ERSPAN), FTP support, High Availability, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IP-MAC binding, Loop Guard, MAC Access Bypass (MAB), MAC black/whitelist, MACsec support, MLD querier, MLD snooping, Network Access Control (NAC), Port mirroring, Port trunking, Precision Time Protocol (PTP), Private VLAN, Quality of Service (QoS), RA guard, Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), sFlow, SNTP support, SPAN mode, Storm Control, STP BPDU Guard, STP Root Guard, VLAN / port mapping, VLAN support, Wake On LAN (WOL)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000/2.5G (PoE++)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1/10/25/40/100 Gigabit QSFP28
Interface Provided: 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 2 x 40/100GBase-X QSFP+, 24 x 1/2.5GBase-T RJ-45
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 1440 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Status Indicators: Fan, Link/activity/speed, PoE max, Power 1, Power 2, System
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 16.1 inch
Weight: 16.53 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
