Product Information

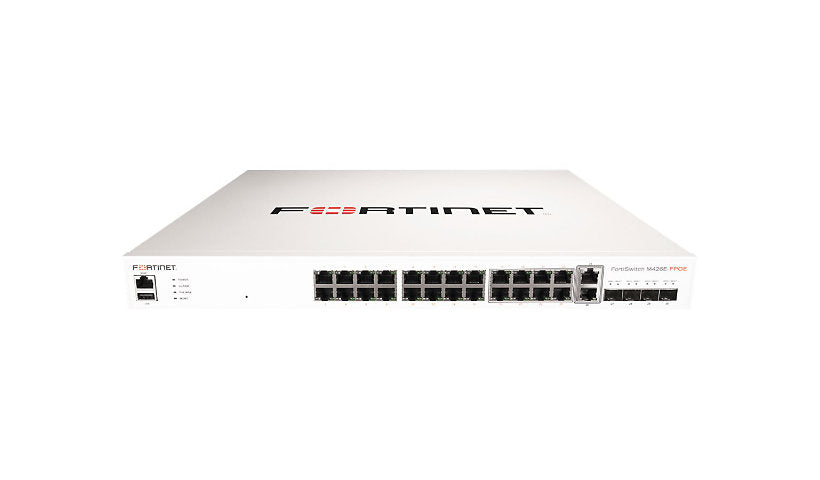

Fortinet's FortiSwitch M426E-FPOE is a Layer 2/3 switch with 16 Gigabit PoE+ ports, eight 2.5G PoE++ ports, two 5G RJ-45 ports and four 10G SFP+ ports. It has a 420 W PoE budget and 172 Gbps of switching capacity, and it is managed from a FortiGate through FortiLink.
Key Features
- 16 x Gigabit RJ-45 PoE+ ports
- 8 x 1/2.5G RJ-45 PoE++ ports
- 2 x 1/5G RJ-45 ports
- 4 x 10G SFP+ ports
- 420 W PoE budget
- FortiLink, 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: M426E-FPOE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RADIUS, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: Bidirectional Forwarding Detection (BFD), IGMP, MSTP, OSPFv2, RIP-2, RSTP, STP, VRRP
Authentication Method: RADIUS, Secure Shell (SSH)
Performance: Latency: 1 µs, Packets per second: 255 Mpps, Switching capacity: 172 Gbps
Capacity: ACL entries: 512, Host entries: 4000, Link aggregation groups: 8, Packet buffer size: 2 MB, Routing entries: 64, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 16K entries
Jumbo Frame Support: Yes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Guard, Cloud managed, DHCP client, DHCP snooping, DiffServ Code Point (DSCP) support, Flow control, IGMP snooping, IP forwarding support, Link Aggregation, Link Aggregation Group (LAG), LLDP support, Management Information Base (MIB) II, Port mirroring, Private VLAN, Root Guard, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Static routing, Storm Control, STP PortFast, Syslog support, Telnet server, Time Domain Reflectometry (TDR), Type of Service (ToS), VLAN Tagging
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 8
Ports Type (2nd): 100/1000/2.5G (PoE++)
Ports (3rd) Quantity: 2
Ports (4th) Quantity: 4
Ports (4th) Type: 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 1 x console RJ-45, 1 x management RJ-45, 16 x 1000Base-T RJ-45 PoE+, 2 x 1/5GBase-X RJ-45, 4 x 10GBase-X SFP+, 8 x 1/2.5GBase-T RJ-45 4PPoE
Power Over Ethernet (PoE): PoE++
QSFP Slots: 100/1000/2.5G/5G
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 442 watt
PoE Budget: 420 watt
Memory and Processor
RAM Installed: 1 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Years
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 16.1 inch
Weight: 13.01 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
