Product Information

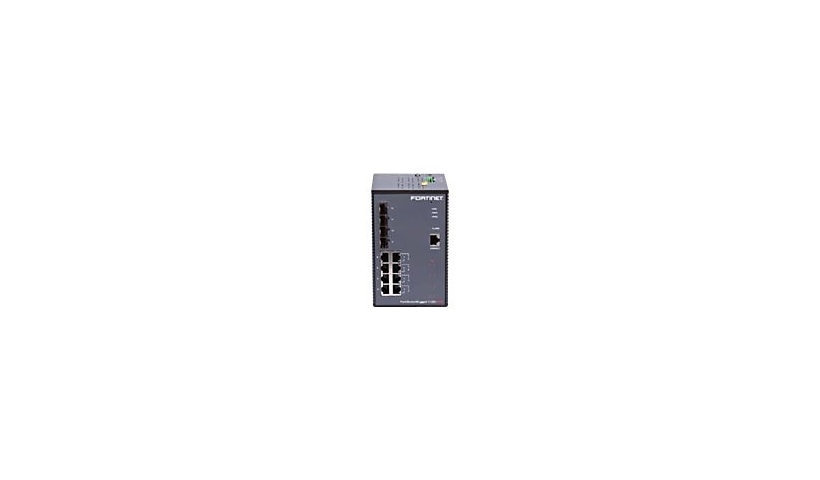

Fortinet's FortiSwitch Rugged 112D-POE is a fanless switch for harsh environments, with eight Gigabit PoE+ ports at up to 30 W and four Gigabit SFP ports. It runs from -40 to 167 F and mounts on a DIN rail or wall.
Key Features
- 8 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x Gigabit SFP ports
- -40 to 167 F operating range
- Fanless rugged design
- DIN rail or wall mount
- DB-9 console port
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch Rugged
Model: 112D-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: Gigabit Ethernet
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, Telnet, TFTP
Authentication Method: RADIUS, TACACS+
Jumbo Frame Support: Yes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Fanless, Port mirroring
Connectivity
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Combo Gigabit SFP
Interface Provided: 1 x console DB-9, 4 x Gigabit LAN SFP, 8 x 1000Base-TX RJ-45 30 W
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
MTBF: 30 Year
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: PoE, Port transmission speed, Power
Dimensions and Weight
Height: 6.1 inch
Width: 3.8 inch
Depth: 4.2 inch
Weight: 2.71 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: CISPR 22, EN55022 Class B, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IP30, RoHS, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
