Product Information

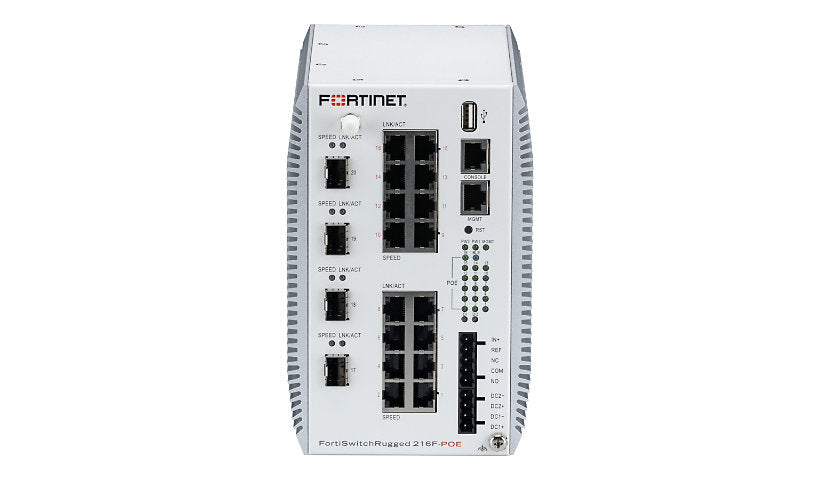

This FortiSwitch Rugged 216F-POE from Fortinet is a managed Layer 3 industrial switch for DIN rail mounting. It has sixteen Gigabit RJ-45 PoE++ ports (up to 90 W per port, 360 W budget), four 1/10G SFP+ uplinks, a management port, a console and USB, with 1 GB of RAM and redundant power inputs. It supports 4,000 VLANs, 2,000 ACLs and 8 link aggregation groups. This is a switch, not a firewall.
Key Features
- 16 x 1G PoE++ (90 W per port)
- 360 W PoE budget
- 4 x 1/10G SFP+
- Layer 3 managed
- Redundant power inputs
- DIN rail mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch Rugged
Model: 216F-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, MIB, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, TCP/IP, Telnet, TFTP, UDP, Web GUI
Routing Protocol: BGP, BGP-4, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IS-IS, MLD, MSTP, OSPF, OSPFv2, OSPFv3, PIM-SSM, RIP, RIP-2, RSTP, Static IP routing, STP, URPF, VRRP, VRRPv3
Authentication Method: Extensible Authentication Protocol (EAP), RADIUS, Secure Shell (SSH)
Performance: Latency: < 1 µs, Packet buffer size: 1.5 MB, Packets per second: 166 Mpps, Switching capacity: 112 Gbps
Capacity: ACL: 2000, Link aggregation groups: 8, Spanning Tree Protocol instances: 32, VLANs supported: 4000
MAC Address Table Size: 16K entries
Jumbo Frame Support: Yes
Features: 802.1x authentication, Access Control List (ACL) support, ARP support, Auto-discovery, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Automatic topology detection, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DSCP based ToS, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Explicit Congestion Notification (ECN), Fanless, Firewall protection, FortiLink Mode, FTP support, High Availability, High-speed Self Recovery (HSR), IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IP-MAC binding, IPFIX, IPv6 RA Guard, Link Aggregation Group (LAG), LLDP support, LLDP-MED, Loop Guard, MAC black/whitelist, Media Redundancy Protocol (MRP), MLD proxy, MLD querier, MLD snooping, Multichassis link aggregation (MC-LAG), NetFlow, Network Access Control (NAC), Parallel Redundancy Protocol (PRP), Policy based access control, Policy based routing, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Quality of Service (QoS), RA guard, Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), Reset button, sFlow, SNTP support, Storm Control, STP BPDU Guard, STP Root Guard, Switched Port Analyzer (SPAN), Time Domain Reflectometry (TDR), Type of Service (ToS), Unified threat management (UTM), Virtual Extensible LAN (VXLAN), VLAN / port mapping, VLAN support, Wake On LAN (WOL), Zero-Touch Deployment
Features: Power Polarity Reverse Protect
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000 (PoE++)
Ports (2nd) Quantity: 4
Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+
Interface Provided: 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB Type A, 16 x 1000Base-T RJ-45 PoE++ - 90 W, 4 x 1/10GBase-X SFP+
Power Over Ethernet (PoE): PoE++
Power
PoE Budget: 360 watt
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 1 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
MTBF: >30 Year
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Bluetooth Low Energy (BLE), Input, Link/activity/speed, Management, Output, PoE activity, Power 1, Power 2
Dimensions and Weight
Height: 4.6 inch
Width: 6.7 inch
Depth: 7.1 inch
Weight: 6.61 lbs
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32 Class A, BSMI Class A, CISPR 32, CNS 15598-1:2020, CNS 15936: 2016 Class A, Directive 2014/30/EU, EMC, EN 55032:2015 Class A, EN 55035:2017/A11:2020, FCC, FCC Part 15 B Class A, ICES, ICES-003 Issue 7: 2020 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, IP40, LVD 2014/35/EU, RCM, RoHS, UL 62368-1 Third Edition, VCCI, VCCI-CISPR 32:2016 Class A, WEEE
Compliant Standards: IEEE 1588v2, IEEE 1613, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
