Product Information

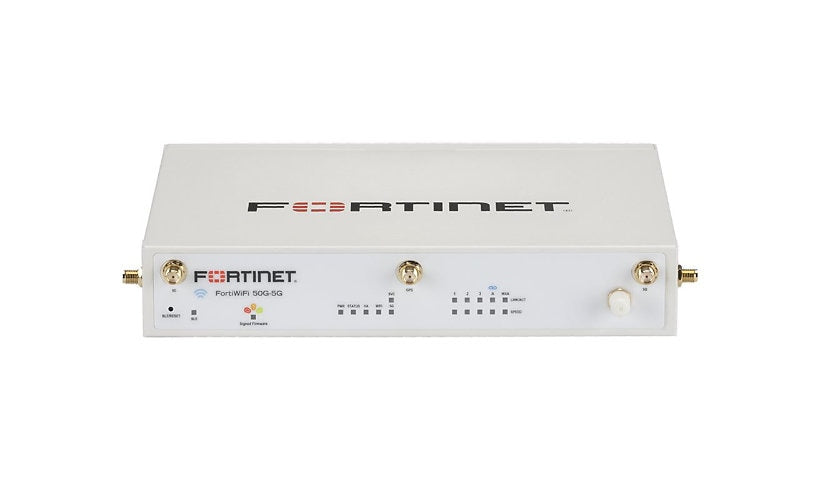

The Fortinet FortiWiFi 50G is a desktop firewall with built in Wi-Fi 6 (up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz), rated at 5 Gbps firewall (1518-byte UDP), 2.25 Gbps IPS and 1.25 Gbps NGFW, with up to 720,000 TCP sessions, 2,000 policies and 250 client to gateway tunnels. It has one WAN, one FortiLink and three Gigabit LAN ports, three SMA antenna connectors, a console, USB 3.0 and Bluetooth LE. This is the hardware without a service bundle.
Key Features
- Built in Wi-Fi 6
- 5 Gbps firewall (1518-byte UDP)
- 1.25 Gbps NGFW
- 720,000 TCP sessions
- 1 WAN + 1 FortiLink + 3 LAN
- Desktop, cloud managed
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiWiFi
Model: 50G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Country: American Samoa, Argentina, Aruba, Bahamas, Bermuda, Canada, Cayman Islands, Dominican Republic, Guam, Haiti, Mariana Islands, Marshall Islands, Nicaragua, Palau, Puerto Rico, Saint Kitts and Nevis, Saint Lucia, Saint Vincent, United States, Virgin Islands
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 250, Concurrent TCP sessions: 720000, Firewall policies: 2000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 5, New TCP sessions per second: 85000, Number of FortiAP devices (tunnel mode): 8, Number of FortiAP devices: 16, Number of FortiSwitches: 8, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 74000, SSL inspection CPS: 699, Virtual domains: 5
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Application control throughput (HTTP 64K): 2.8 Gbps, CAPWAP throughput: 3.8 Gbps, Firewall latency (64-byte UDP): 2.42 μs, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 4 Gbps, Firewall throughput: 6 Mpps, IPS throughput (enterprise traffic mix): 2.25 Gbps, Maximum data rate (2.4 GHz): 574 Mbps, Maximum data rate (5 GHz): 1201 Mbps, NGFW throughput (enterprise traffic mix): 1.25 Gbps, SSL inspection throughput: 1.3 Gbps, Threat protection throughput (enterprise traffic mix): 1.1 Gbps, VPN throughput (512-bit IPSec): 4.5 Gbps
Antennas: 3
Antenna Form Factor: External detachable
Operating System Edition: FortiOS
Features: 2x2 MIMO technology, AI powered, Built-in ASIC, Data Loss Prevention (DLP), DDoS Protection, Fanless, Firewall protection, High Availability, Intrusion Prevention System (IPS), NGFW appliance, SD-WAN support, Self-healing network, SSL inspection, Trusted Platform Module (TPM), URL filtering, VPN support, Zero Trust Network Access (ZTNA)
Connectivity
Ports: 5
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN), 1 x 1000Base-T (FortiLink) - RJ-45, 1 x console - RJ-45, 1 x USB 3.0 - Type A, 3 x 1000Base-T - RJ-45, 3 x antenna - SMA
Expansion Slots: 1 (total) / 1 (free) x Nano SIM card
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Bluetooth Low Energy (BLE), Firmware, HA, Link/activity/speed, Power, Reset, Status, WAN, Wi-Fi
Dimensions and Weight
Height: 1.7 inch
Width: 8.5 inch
Depth: 7 inch
Weight: 2.43 lbs
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
