Product Information

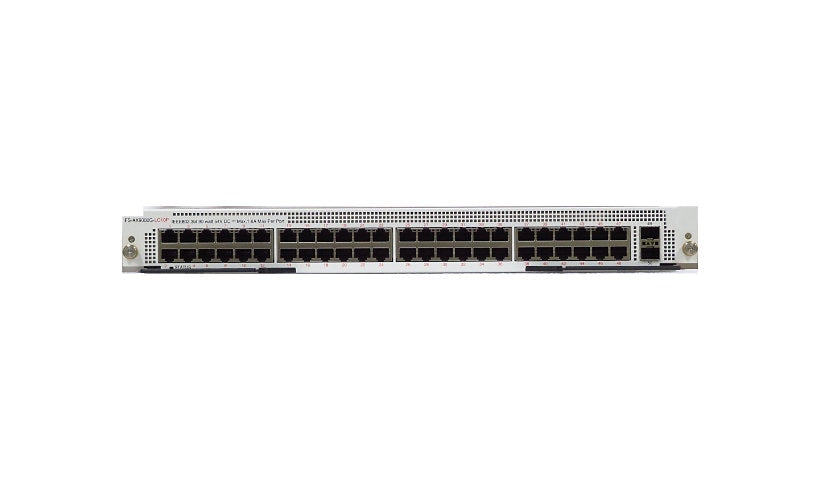

The FS-AX9000G-LC10P from Fortinet's FortiSwitch range is a hot-swappable line card with 48 multigigabit RJ-45 ports (1/2.5/5/10GBASE-T) that can supply up to 90 W of PoE per port, plus two 10G SFP+ ports. It carries an 8 MB packet buffer and 20 GB of flash, and supports forward error correction.
Key Features
- 48 x 1/2.5/5/10GBASE-T RJ-45 PoE ports
- Up to 90 W PoE per port (802.3bt)
- 2 x 10G SFP+ ports
- 8 MB packet buffer, 20 GB flash
- Hot swappable, FEC support
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: FS-AX9000G-LC10P
Product Type: Expansion module
Compatibility Specs: P/N: FN-CABLE-QSFP28-2, FN-CABLE-QSFP28-3, FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5, FN-TRAN-LX, FN-TRAN-QSFP28-SR, FN-TRAN-SFP+LR, FN-TRAN-SFP+SR, FN-TRAN-SFP+SRI, FN-TRAN-SFP28-SR, FN-TRAN-SX, FOR-FN-TRAN-SFP+SR
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Data Transfer Rate: 10 GBps
Capacity: Packet buffer memory: 8 MB
Features: 90W PoE power per port, Forward Error Correction (FEC), Hot swappable, Modular design
Connectivity
Port Quantity: 48
Ports (2nd) Quantity: 2
Ports (2nd) Type: 10 Gigabit Ethernet
Interface Provided: 2 x 10 Gigabit Ethernet - SFP+, 48 x 1/2.5/5/10GBase-T (PoE) - RJ-45
Network & Adapter Ports: 1/2.5/5/10GBase-T (PoE)
Memory and Processor
Flash Memory Installed: 20 GB
Physical Characteristics
Form Factor: Plug-In Module
Status Indicators: Status
Dimensions and Weight
Height: 1.9 inch
Width: 17.2 inch
Depth: 19.5 inch
Weight: 15.87 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
