Product Information

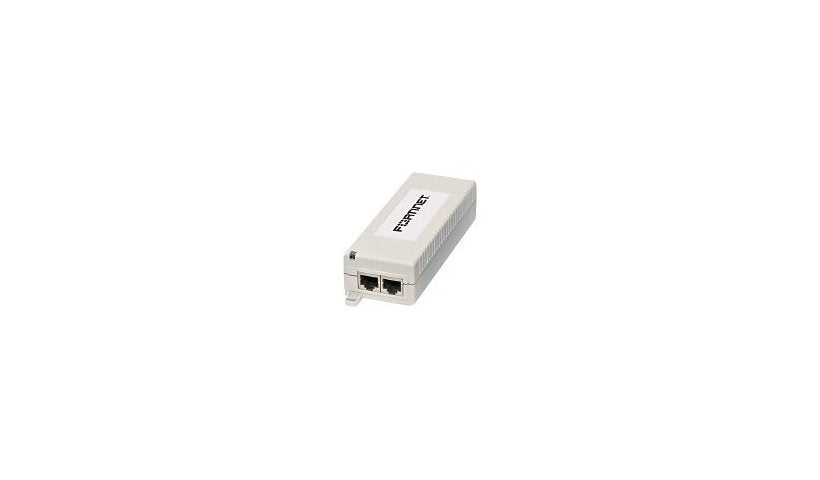

Fortinet's GPI-115 is a compact single port midspan that delivers 15.4 W at 48 V with Gigabit data under 802.3af, for FortiAP access points such as the 210B and 220B and other 802.3af devices.
Key Features
- 1 x Gigabit PoE output
- 15.4 W at 48 V, 802.3af
- For FortiAP 210B, 220B
- AC 90-264 V input range
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet
Product Type: PoE Injector
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power
Input Voltage Range: AC 90 - 264 V
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Power Device Features: LED indicators
Power Output Connectors Details: 1 x RJ-45
Power Provided: 15.4 watt
Form Factor (Power Device): External
Provided Voltage: 48 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
MTBF: 100,000 Hours
Dimensions and Weight
Height: 1.3 inch
Width: 2.1 inch
Depth: 5.5 inch
Weight: 7.05 ounce
Certifications and Listing
Compliant Standards: cUL, EN55022 Class B, EN55024, FCC Part 15 B, GS, IEC 60950-1, Plug and Play, RoHS, UL, VCCI, WEEE
ENERGY STAR Certified: No
Warranty
Service Activation: No
Not sure this fits your setup? Send us the model of the device you need to power or connect and the DatorPro team will confirm compatibility before you order.
