Product Information

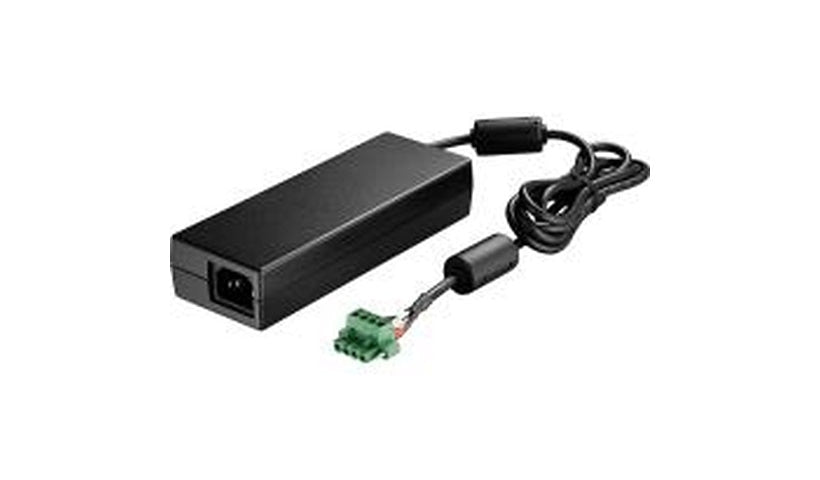

The FSP 96PSA-A150W19P4-4 is a 150W, 19V external adapter with PFC, 90 to 264V input, a C14 inlet, a 4 pin terminal block output, 88% efficiency, a 100,000 hour MTBF, Energy Star and a 5 ft power cable, for Advantech and other industrial equipment.
Key Features
- 150W, 19V
- PFC
- 4 pin terminal block
- 100,000 hr MTBF
- Energy Star
- Industrial use
Product Information
Brand: FSP
Manufacturer: IMC Networks
Product Line: FSP
Product Type: Power Adapter
Subcategory: Power adapters
Packaged Quantity: 1
Color Category: Black
Power
Power Factor Correction: Power Factor Correction (PFC)
Input Voltage Range: AC 90 - 264 V
Required Voltage: AC 100-240 volt
Frequency: 47 - 63 hertz
Input Connector Type: Power IEC 60320 C14
Power Output Connectors Details: 1 x 4 pin terminal block
Power Provided: 150 watt
Form Factor (Power Device): External
Max Input Current: 7.89 ampere
Efficiency: 88%
Provided Voltage: DC 19 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
MTBF: 100,000 Hours
Dimensions and Weight
Height: 1 inch
Width: 3 inch
Depth: 6 inch
Included Items
Cables: Power cable 5 ft
Certifications and Listing
Energy Star: Yes
Compliant Standards: BSMI, CB, CCC, DoE Level VI, EAC, Energy-Related Products (ErP) Lot 7, EPS, FCC, IEC 61000-3-2, KC, PSE Mark, RCM, RoHS, TUV, UL
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this adapter fits your laptop? Send us your laptop model and the part number or wattage of your current charger, and the DatorPro team will help you confirm the connector and power rating before you order.
