Product Information

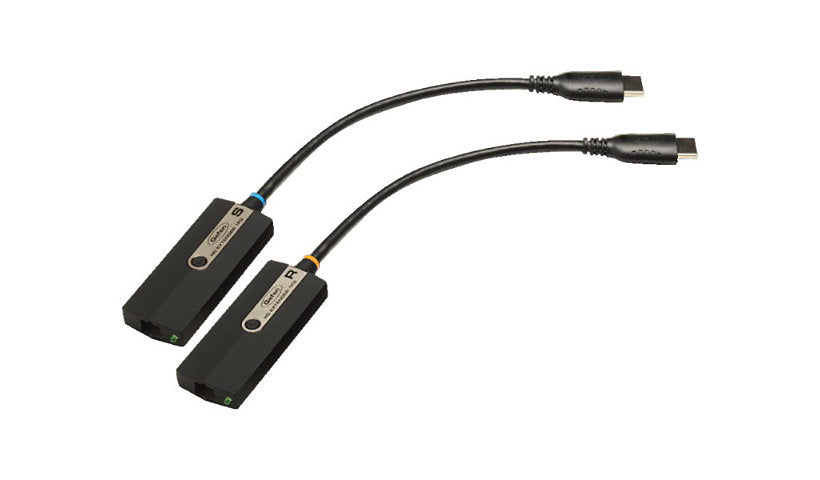

The Gefen fiber optic HDMI extender with pigtail modules extends video and audio over long distances, up to 1000 m (3280 ft), using multimode fiber with SC connectors. It supports resolutions up to 1080p with 225 MHz bandwidth and is HDCP compliant. It operates from 0°C to 50°C at 10–80% humidity, and an external power adapter is included.
Key Features
- HDMI over fiber extender (pigtail modules)
- Up to 1000 m (3280 ft)
- 1080p, 225 MHz
- HDCP compliant
- SC multimode fiber
Product Information
Brand: Gefen
Manufacturer: Gefen
Product Line: Gefen
Model: EXT-HD-CP-FM10
Product Type: Video/audio extender
Form Factor: External
Technical Information
Features: HDCP compliant
Dimensions and Weight
Width: 1.2 inch
Height: 0.5 inch
Depth: 1.1 inch
Weight: 15.87 ounce
Included Item
Packaged Quantity: 1
Additional Information
Connectivity Technology: Wired
Max Transfer Distance: 3280 ft
Interface Provided: 1 x HDMI (input), 1 x HDMI (output), 1 x network - input - SC multi-mode, 1 x network - output - SC multi-mode
KVP Max Resolution: 1080p
KVM Max Supported Video Bandwidth: 225 MHz
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 - 80%
Device Type: External power adapter
