Product Information

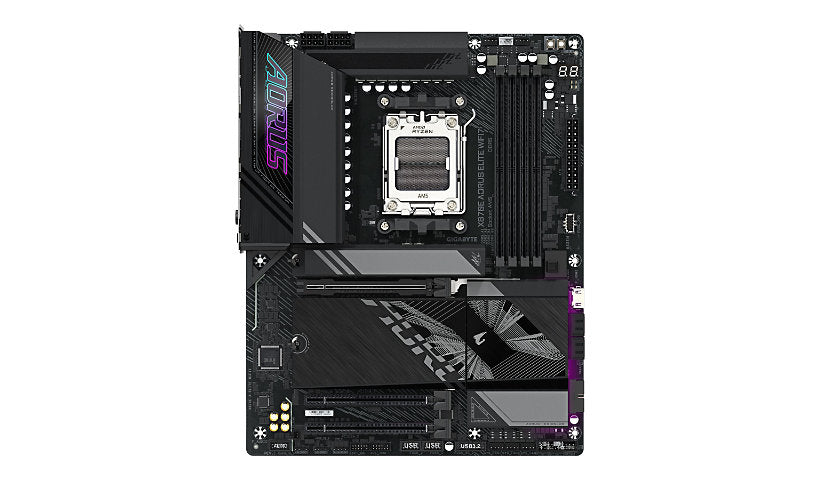

The GIGABYTE AORUS X870E ELITE WIFI7 is an ATX board for AMD Ryzen 7000, 8000 and 9000 processors on Socket AM5. It has four DDR5 slots for up to 256 GB, six M.2 slots (three PCIe 5.0, three PCIe 4.0), Wi-Fi 7, 2.5 Gigabit LAN and USB4, with a 16+2+2 phase power design. The memory speed list in the source data looks incorrect for DDR5, so please check speeds before ordering.
Key Features
- AMD X870E chipset, Socket AM5, ATX
- 4 x DDR5, up to 256 GB, EXPO and XMP
- 3 x PCIe 5.0 M.2, 3 x PCIe 4.0 M.2, 4 x SATA
- Wi-Fi 7, Bluetooth 5.4, 2.5GbE, USB4
- 16+2+2 phase power, Realtek ALC1220 audio
- EZ Latch features, pre-mounted I/O shield
Product Information
Brand: GIGABYTE
Manufacturer: Giga-Byte
Product Line: AORUS
Model: X870E ELITE WIFI7
Product Type: Motherboard
Packaged Quantity: 1
Network and Communication
Data Link Protocols: 2.5 Gigabit Ethernet, Bluetooth 5.4, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Features: AMD EXPO technology, Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Connectivity
Network: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Audio Output: High Definition Audio (8-channel)
Output Type: Sound card
Integrated Graphics: Graphics adapter (CPU required)
Expansion Slots: 1 x CPU, 1 x PCIe 3.0 x16 (x2 mode), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 5.0 x16, 4 x DIMM 288-pin
Power
Power Connectors: 2 x 8-pin ATX12V connectors, 24-pin main power connector
Memory and Processor
Compatible Processors: Ryzen
Processor Socket: Socket AM5
Supported Memory Speed: 2200 MHz, 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.)
Memory Slots: 4 DIMM slots
Mainboard Supported RAM: DDR5 SDRAM
Supported RAM (Registered or Buffered): Unbuffered
Supported RAM Integrity Check: Non-ECC
Storage Interfaces: PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Chipset Type: AMD X870E
Compatible Processors Comments: Supports Ryzen 7000/8000/9000 Series
Audio Codec: Realtek ALC1220
Processors Installed: 0
Max Memory Supported: 256 GB
Total Processor Supported: 1
Technical Information
Hardware Monitoring: Fan control, Fan fail warning, Fan speed detection, Noise detection, System voltage, Temperature detection, Water cooling flow rate
Included Software: GIGABYTE Control Center, Norton Internet Security (OEM Version)
BIOS Type: AMI
BIOS Features: ACPI 5.0 support, DMI 2.7 support, PnP 1.0a support, SMBIOS 2.7 support, UEFI BIOS, WfM 2.0 support
Hardware Features: 16+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, EZ Debug LED, EZ Plug, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 Thermal Guard Ext., M.2 Thermal Guard L, PCIe EZ Latch Plus, Pre-mounted I/O shield, RGB FUSION 2.0, VRM Thermal Armor Advanced
Form Factor (Motherboard): ATX
Included Items
Package Details: Box
Certifications and Listing
Compliant Standards: High Definition Audio
