Product Information

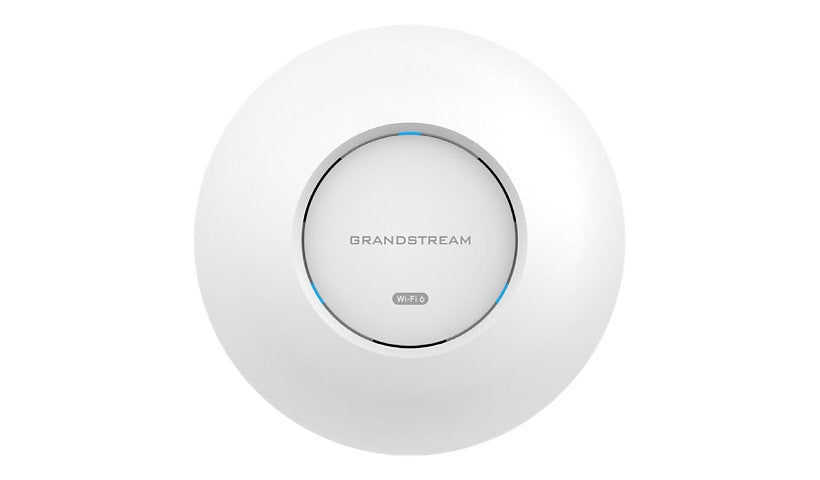

Grandstream's GWN7660 is a dual band Wi-Fi 6 access point for high density business networks, with 2x2:2 MU-MIMO and OFDMA. It reaches about 574 ft in open space, has two Gigabit PoE+ ports, draws about 9 W and comes with ceiling and wall mounting kits.
Key Features
- Wi-Fi 6 dual band: 2.4, 5 GHz
- 2x2:2 MU-MIMO, OFDMA
- Range up to 574 ft
- 2 x Gigabit RJ-45 (PoE+)
- About 9 W power use
- Ceiling and wall mounting kits
Product Information
Brand: Grandstream
Manufacturer: Grandstream
Product Line: Grandstream
Model: GWN7660
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: AES, TKIP, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3
Capacity: Maximum number of configured SSIDs: 32, Number of concurrent clients: 256
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Network Device: Channel bandwidth (2.4 GHz): 20 / 40 MHz, Channel bandwidth (5 GHz): 20 / 40 / 80 MHz, Maximum data rate (2.4 GHz): 573.5 Mbps, Maximum data rate (5 GHz): 1201 Mbps
Antennas: 2
Antenna Form Factor: Internal
Max Range Open Space: 574 ft
Features: 2x2:2 MU-MIMO technology, Advanced QoS, Ceiling mountable, IPv4 support, IPv6 support, Multiple SSID support, Security lock slot (cable lock sold separately), Security slot (Kensington security lock compatible), Type of Service (ToS), VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 2 x 1000Base-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 9 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 1.6 inch
Width: 7.1 inch
Depth: 7.1 inch
Weight: 15.62 ounce
Included Items
Included Accessories: Ceiling mounting kit, Wall mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ax
Compliant Standards: FCC, IC, RCM
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
