Product Information

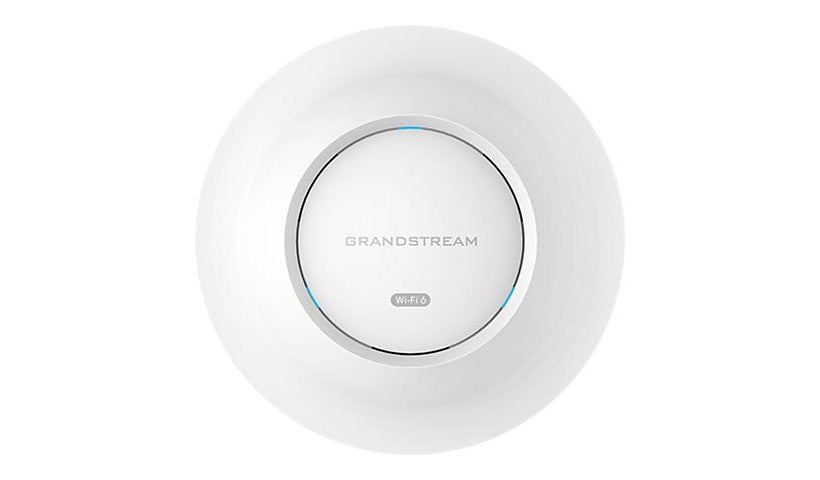

Grandstream's GWN7664E is a Wi-Fi 6 access point with 4x4:4 MU-MIMO, beamforming and eight antennas, reaching up to 6 Gbps and about 574 ft. It has two 2.5G PoE+ ports, secure boot and VLAN support, draws about 21 W and includes a mounting kit.
Key Features
- Wi-Fi 6 dual band, 4x4:4
- Up to 6 Gbps
- 2 x 2.5G RJ-45 (PoE+)
- Range up to 574 ft
- Secure boot, VLAN, QoS
- Mounting kit included
Product Information
Brand: Grandstream
Manufacturer: Grandstream
Product Line: Grandstream
Model: GWN7664E
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPv4, IPv6
Encryption: AES, TKIP, WPA, WPA2, WPA2-PSK, WPA3
Data Transfer Rate: 6 GBps
Capacity: Maximum number of configured SSIDs: 32, Number of concurrent clients: 512
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
Network Device: Channel bandwidth (2.4 GHz): 20 / 40 MHz, Channel bandwidth (5 GHz): 20 / 40 / 80 / 160 MHz, Maximum data rate (2.4 GHz): 114 Mpps, Maximum data rate (5 GHz): 4.8 Gbps
Antennas: 8
Antenna Form Factor: Internal
Wi-Fi Rating: AX6000
Max Range Open Space: 574 ft
Features: 4x4:4 MU-MIMO technology, Advanced QoS, Beamforming technology, Secure Boot, Type of Service (ToS), VLAN support, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 2 x 2.5 GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 21 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall / ceiling mountable
Status Indicators: Device, Status
Dimensions and Weight
Height: 1.8 inch
Width: 8.1 inch
Depth: 8.1 inch
Weight: 25.18 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11e, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at
Compliant Standards: FCC, IC, RCM
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
