Product Information

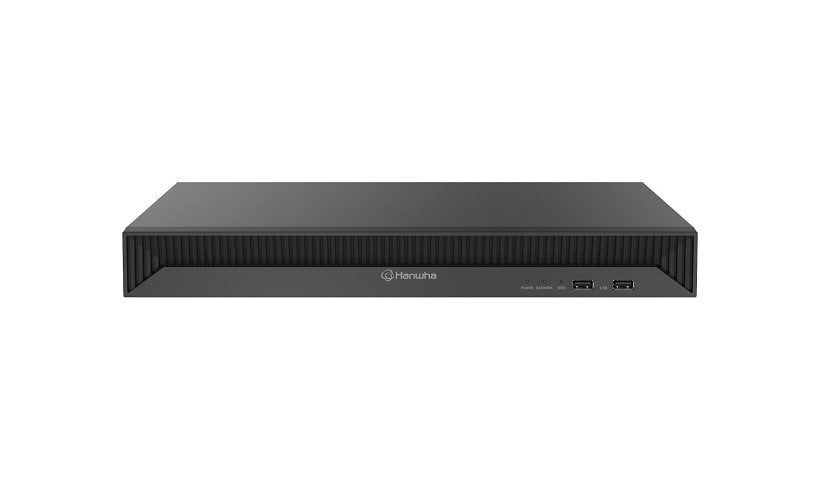

The Hanwha Vision BRB-X32101E (BRB-X32101E-24TB) is a 32 channel standalone NVR with 24 TB storage on 4 bays (up to 64 TB), 16 GB RAM, 32 Blaze Premium VMS licenses, a hardened OS on eMMC, RAID 1, up to 250 Mbps recording, 2 gigabit ports and DisplayPort and HDMI output, in a metal housing. Keyboard and mouse included.
Key Features
- 32 channels, 24 TB
- 4 bays, up to 64 TB
- 32 Blaze Premium licenses
- 250 Mbps recording
- DP and HDMI
- Keyboard, mouse
Product Information
Quantity Supported: 4
Software Included (Y): 32 Blaze Premium VMS licenses
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: BRB-X32101E
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 2
Capacity: 24 TB
Features: 2-way audio communication, 24/7 continuous recording, eMMC SSD OS system drive, Hardened operating system, Metal housing, RAID 1 support, Recording data rate up to 250 Mbps
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Video Output Ports: DisplayPort x 1, HDMI x 1
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 80 watt
Memory and Processor
Supported Max Total Capacity: 64 TB
RAM: 16 GB
Technical Information
Networked: Yes
Interface: Serial ATA
Video Channels: 32
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH (non-condensing)
Dimensions and Weight
Height: 3.5 inch
Width: 17.3 inch
Depth: 16.9 inch
Weight: 12.06 lbs
Included Items
Package Content: Keyboard, Mouse
