Product Information

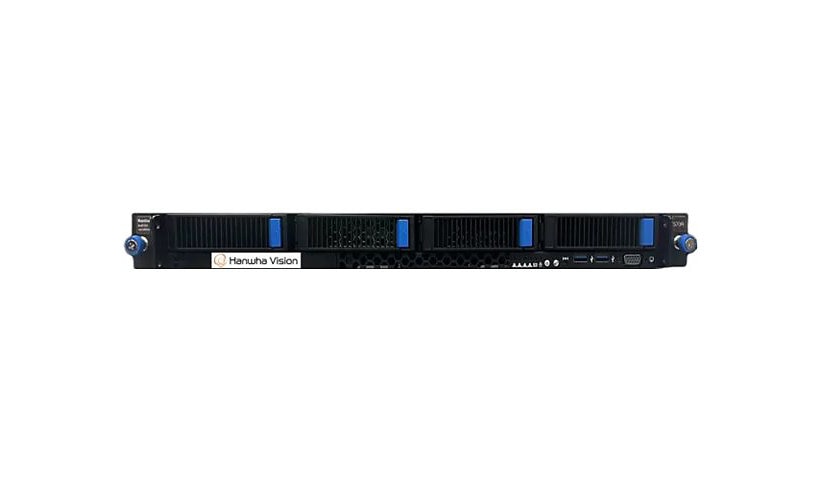

The Hanwha Vision BRR-P1H1WH1 (BRR-P1H1WH1-48TB) is a 1U rack NVR for 128 channels with 48 TB storage (up to 80 TB, 4 bays), Intel Xeon 6333P, 16 GB RAM, NVIDIA Quadro T400, 2 x 480 GB SSD OS drives in RAID 1, Windows 11 IoT Enterprise 2024 LTSC and BLAZE VMS (5 temporary 30 day onboarding licenses). RAID 0, 1, 5, 6, 10, up to 470 Mbps recording, 2 gigabit ports, 3 Mini DP and VGA, IPMI. Rails, cable arm, keyboard, mouse and Mini DP to HDMI adapter included.
Key Features
- 128 channels, 48 TB
- Xeon 6333P, 16 GB
- NVIDIA Quadro T400
- RAID 0/1/5/6/10
- 470 Mbps recording
- 1U, rails included
Product Information
Quantity Supported: 4
Software Included (Y): BLAZE VMS (5 temporary 30-day onboarding licenses)
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: BRR-P1H1WH1
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 2
Features #2: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Capacity: 48 TB
Operating System Edition: Windows 11 IoT Enterprise 2024 LTSC
Features: Remote management (IPMI)
Features: 2 x 480GB SSD OS system drive (RAID 1), 80 Plus Platinum power device, Metal housing, NVIDIA Quadro T400, RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, Recording data rate up to 470 Mbps
Connectivity
Additional Ports: Serial, USB 3.2 x 4
Video Output Ports: Mini DisplayPort x 3, VGA x 1
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Memory and Processor
Supported Max Total Capacity: 80 TB
CPU: Intel Xeon 6333P
RAM: 16 GB
Technical Information
Networked: Yes
Interface: Serial ATA
Video Channels: 128
Touchscreen: No
Min Operating Temperature: 50 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Operating Humidity: 10 - 80% RH (non-condensing)
Physical Characteristics
Rack-mountable: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 19.6 inch
Weight: 50.71 lbs
Included Items
Package Content: Cable management arm, Keyboard, Mini DisplayPort to HDMI adapter, Mouse, Slide rails
