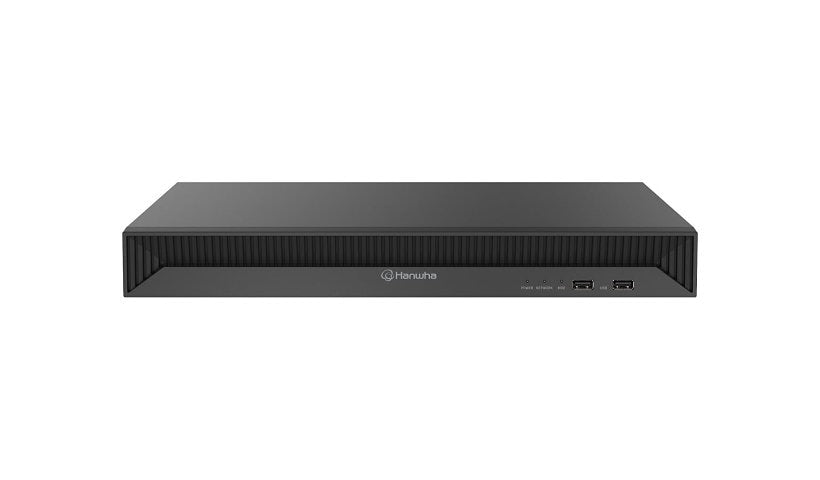

Product Information
The Hanwha Vision BRB-X32101E (BRB-X32101E-30TB) is a 32 channel NVR with PoE, 30 TB installed and 4 bays for up to 64 TB, 32 Blaze Premium VMS licenses, RAID 1, 16 GB RAM and recording up to 250 Mbps. It has HDMI and DisplayPort outputs, two gigabit ports and two way audio, on a hardened OS. Keyboard and mouse included. Black.
Key Features
- 32 channels
- 30 TB installed
- 32 Blaze licenses
- Up to 64 TB
- RAID 1, PoE
- Keyboard, mouse
Product Information
Quantity Supported: 4
Software Included (Y): 32 Blaze Premium VMS licenses
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: BRB-X32101E
Device Type: Standalone NVR
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T
Network Ports: 10/100/1000Base-T x 2
Capacity: 30 TB
Features: 2-way audio communication, 24/7 continuous recording, eMMC SSD OS system drive, Hardened operating system, Metal housing, RAID 1 support, Recording data rate up to 250 Mbps
Connectivity
Additional Ports: USB 2.0 x 2, USB 3.0 x 2
Video Output Ports: DisplayPort x 1, HDMI x 1
Power Over Ethernet (PoE): PoE
Power
Input Voltage: 100 - 240 V
Frequency: 50/60 Hz
Power Consumption: 80 watt
Memory and Processor
Supported Max Total Capacity: 64 TB
RAM: 16 GB
Technical Information
Networked: Yes
Interface: Serial ATA
Video Channels: 32
Touchscreen: No
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 85% RH (non-condensing)
Dimensions and Weight
Height: 3.5 inch
Width: 17.3 inch
Depth: 16.9 inch
Weight: 12.06 lbs
Included Items
Package Content: Keyboard, Mouse
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
