Product Information

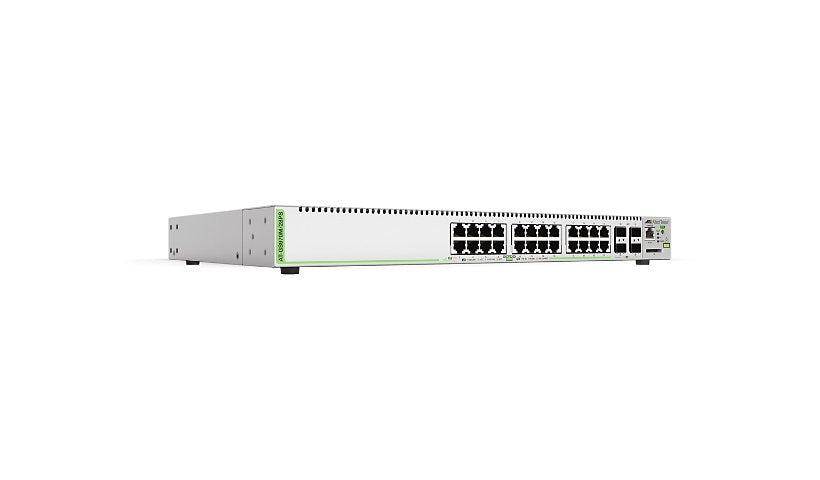

Hanwha Vision's HV-GS970M/28PS-10 is a managed Layer 3 switch with 24 Gigabit PoE+ ports and four 100/1000 SFP uplinks, suited to IP camera networks. It has a 370 W PoE budget, static routing and 56 Gbps of switching fabric bandwidth.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 100/1000 SFP uplinks
- 370 W PoE budget
- 56 Gbps switching fabric
- Layer 3, static routing
- Internal power supply
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision GS970M Series
Model: HV-GS970M/28PS-10
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, Web GUI
Routing Protocol: RIP
Performance: Forwarding rate: 41.7 Mbps, Latency (10 Mbps): 59 µs, Latency (100 Mbps): 8.6 µs, Latency (1000 Mbps): 4.3 µs, Switching fabric bandwidth: 56 Gbps
Features: Static routing
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 100/1000Base-X SFP
Interface Provided: 24 x 10/100/1000 Base-T RJ-45, 4 x 100/1000 Base-X SFP uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Power Consumption Operational: 520 watt
PoE Budget: 370 watt
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 11.4 inch
Weight: 10.36 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
