Product Information

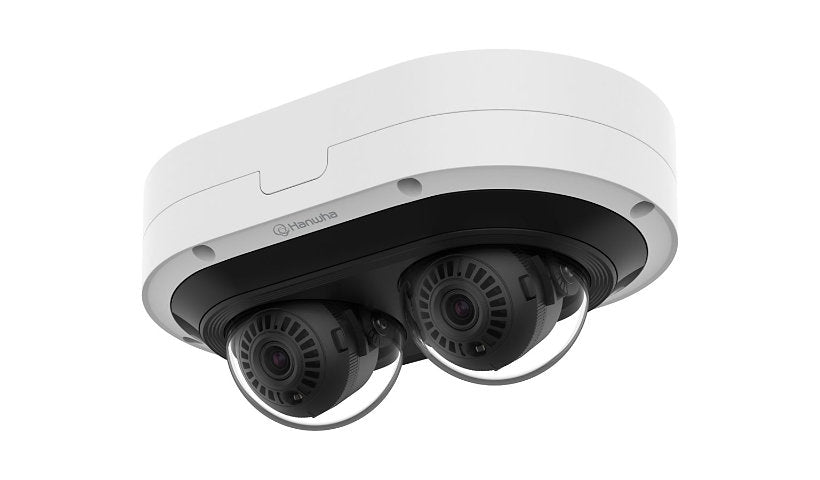

The Hanwha Vision PNM-7082RVD is a two sensor camera with two 2 MP sensors recording 1080p at 30 fps through 3 to 6 mm motorized autofocus lenses (2x). It has Extreme WDR, FIPS 140-2, IP66, IK10 and NEMA 4X ratings and runs on PoE+ at 12.5 W. IR is 82 ft in the spec, 28 m in quick specs and 30 m in the text, please confirm. White.
Key Features
- Two 2 MP sensors
- 1080p at 30 fps
- 3 to 6 mm motorized
- Extreme WDR, FIPS 140-2
- IP66, IK10, NEMA 4X
- PoE+, 12.5 W
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PNM-7082RVD
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Alarm function, Anti-flicker, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Defog, Digest authentication, Extreme WDR, Hallway View, Handover, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, TPM 2.0 module, Trigger recording, Unicast Streaming, User access log, Wide Dynamic Range (WDR), WiseNR, WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: PoE Plus
Power Consumption Operational: 12.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Focus Modes: Automatic
Infrared Distance: 82 ft
Infrared LEDs: Yes
Video Signals: USB
Max Focal Length: 6 millimetre
Optical Zoom: 2
Tilt: 0 to 78
Motion Detection: Yes
Panning Range (degree): 0 to 355
Camera Iris: Fixed iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.0035 lux - B&W - F2.2 - 30 IRE - shutter 1/30 sec, 0.035 lux - color - F2.2 - 30 IRE - shutter 1/30 sec
Total Pixels: 2 x 2,000,000 pixels
Image Sensor Size: 2 x 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.2-3.1
Min Focal Length: 3 millimetre
Sensor Size (metric): 2 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 320 x 240, 640 x 320, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 3.7 inch
Width: 8.5 inch
Depth: 5.3 inch
Weight: 2.93 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
