Product Information

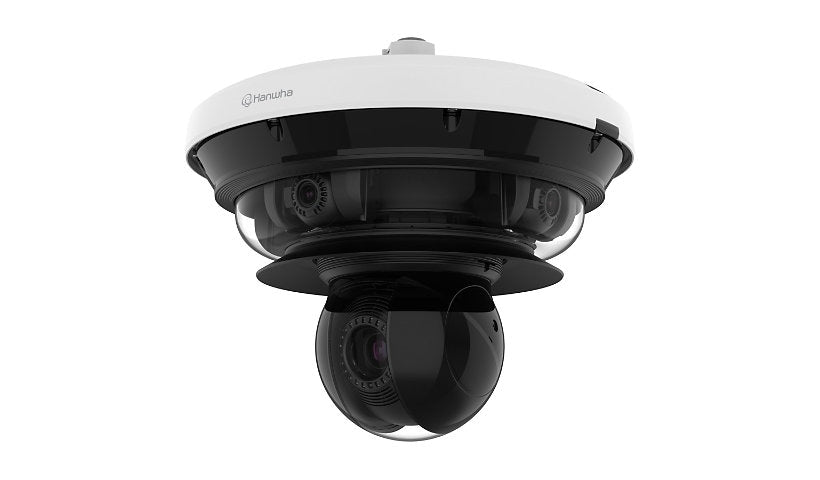

The Hanwha Vision PNM-C34404RQPZ is an outdoor PTZ turret recording up to 3840 x 2160 with 40x optical zoom, panning at up to 700 degrees per second and IR up to 656 ft. It offers auto tracking, Extreme WDR, defog, face detection and FIPS 140-2 Level 2 security. It draws 45 W with the included PoE injector and works from -40 to 50 C. Vandal proof.
Key Features
- 4K PTZ
- 40x optical zoom
- Pan up to 700 degrees/s
- IR up to 656 ft
- Auto tracking, Extreme WDR
- PoE injector included, 45 W
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: PNM-C34404RQPZ
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 2
Features: Anti-flicker, Auto ICR, Auto tracking, Backlight Compensation (BLC), Best Shot Selector (BSS), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Extreme WDR, Face Detection, Fog detection, Gain Control, Hallway View, Handover, Highlight Compensation (HLC), Image flip, Image mirror, Lens Distortion Compensation (LDC), License plate detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object classification, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Smart Zoom, Tamper-detection, Trigger recording, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Vehicle type classification, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseNR II
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE Plus Class 4
Power Consumption Operational: 45 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 8 GB
Flash Memory Installed: 1 GB
Technical Information
Infrared Distance: 656 ft
Infrared LEDs: Yes
Optical Zoom: 40
Digital Zoom: 32
Max Panning Speed (degree/sec): 700
Max Tilting Speed (degree/sec): 500
Tilt: 0 to 65
Motion Detection: Yes
Panning Range (degree): 0 to 360
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.01 lux - B&W - F1.5 - 30 IRE - shutter 1/30 sec, 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec, 0.1 lux - color - F1.5 - 30 IRE - shutter 1/30 sec
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Turret
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11.9 inch
Width: 15 inch
Depth: 15 inch
Weight: 17.42 lbs
Included Items
Included Accessories: PoE injector
