Product Information

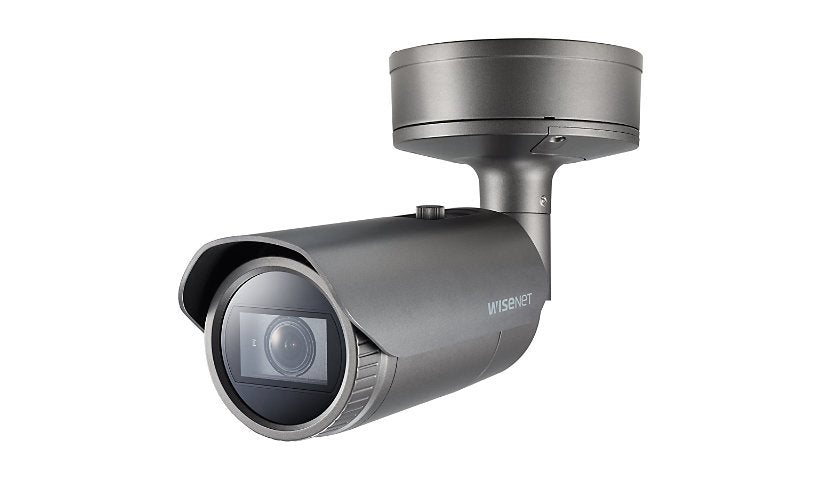

The Hanwha Vision PNO-A9081RLP is a 4K bullet recording 3840 x 2160 at 30 fps with a 1/1.8 inch sensor and 4.5 to 10 mm motorized lens (2.2x), designed for license plate recognition. It has IR up to 98 ft, audio in and out, BNC out, alarm I/O and digital image stabilization, and runs on 12 V DC or PoE+ at 18 W. Dark gray.
Key Features
- 4K at 30 fps
- 4.5 to 10 mm motorized
- License plate recognition
- IR up to 98 ft
- Audio, BNC, alarm I/O
- 12 V DC or PoE+, 18 W
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: PNO-A9081RLP
Packaged Quantity: 1
Color: Dark gray
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Features: Anti-flicker, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Camera Tampering Detection, Constant Bit Rate (CBR), Defocus Detection, Digital Image Stabilization (DIS), Hallway View, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), License plate tracking, Motion Detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Sound classification, Unicast Streaming, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video - BNC, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 18 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 120.7
Angular Field of View (H, Max, Degree): 101.4
Angular Field of View (V, Max, Degree): 53.6
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 52.3
Auto Iris Control: P-Iris
Max Focal Length: 10 millimetre
Optical Zoom: 2.2
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 3840 x 2160 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 45.5
Angular Field of View (V, Min, Degree): 25.5
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.005 lux - B&W - F1.6 - shutter 1/30 sec, 0.05 lux - color - F1.6 - shutter 1/30 sec
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-2.65
Min Focal Length: 4.5 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, U-LAW
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Physical Characteristics
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 14.5 inch
Width: 3.6 inch
Depth: 3.6 inch
Weight: 5.47 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
