Product Information

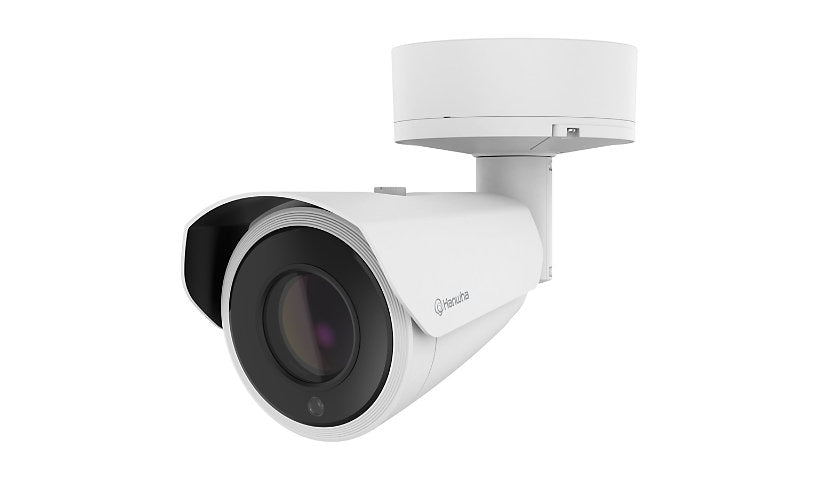

The Hanwha Vision PNO-A9311R is a 4K bullet recording 3840 x 2160 at 30 fps with a 1/1.8 inch sensor and 6.91 to 214.7 mm motorized lens giving 31x optical zoom. It has IR up to 230 ft, face detection, heat map, image stabilization, audio in and out, BNC out and alarm I/O, and runs on 12 V DC or PoE+ at 14 W. White.
Key Features
- 4K at 30 fps
- 31x optical zoom
- IR up to 230 ft
- Face detection, heat map
- Audio, BNC, alarm I/O
- 12 V DC or PoE+
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: PNO-A9311R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: FIPS 140-2 Level 2
Features: Audio Detection, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Digital Image Stabilization (DIS), Entrance / exit detection, Face Detection, Gain Control, Hallway View, Heat Map, Image flip, Image mirror, Intrusion detection, IP address filtering, License plate detection, Loitering detection, Motion Detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Person Detection, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Secure Boot, Shock detection, Social distancing detection, Sound classification, Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video - BNC, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 14 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 1024 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 69.18
Angular Field of View (H, Max, Degree): 60.92
Angular Field of View (V, Max, Degree): 35.26
Infrared Distance: 230 ft
Infrared LEDs: Yes
Video Signals: Composite video, USB
Angular Field of View (D, Min, Degree): 2.52
Auto Iris Control: P-Iris
Max Focal Length: 214.7 millimetre
Optical Zoom: 31
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 2.2
Angular Field of View (V, Min, Degree): 1.24
Camera Iris: Auto iris
Min Focus Distance: 10 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.0075 lux - B&W - F1.36 - 30 IRE - shutter 1/30 sec, 0.075 lux - color - F1.36 - 30 IRE - shutter 1/30 sec
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.36-4.6
Min Focal Length: 6.91 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, U-LAW
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Physical Characteristics
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 14.1 inch
Width: 5.4 inch
Depth: 5.4 inch
Weight: 7.05 lbs
