Product Information

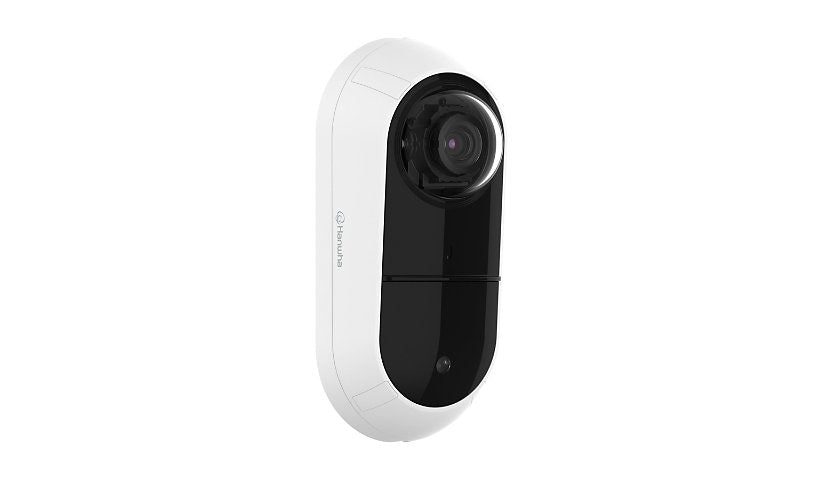

The Hanwha Vision TNV-C8011RW is a 5 MP camera with a 1.6 mm F1.6 lens giving a 175 degree horizontal view, recording 2592 x 1944 at 30 fps. It has a built in mic, IR up to 49 ft, AI analytics and microSD, and runs on PoE at 11.5 W from -30 to 55 C. White.
Key Features
- 5 MP, 2592 x 1944 at 30 fps
- 175 degree horizontal view
- Built in microphone
- IR up to 49 ft
- AI analytics, microSD
- PoE, 11.5 W, white
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision
Model: TNV-C8011RW
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: AI Analytics, Alarm function, Anti-flicker, Appearing / disappearing detection, Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Entrance / exit detection, Gain Control, Hallway View, Handover, Heat Map, Image flip, Image mirror, Intrusion detection, Lens Distortion Compensation (LDC), Loitering detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle counting, Vehicle Detection, Vehicle type classification, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45, USB - Micro-USB
Power
Low Voltage Power: PoE
Power Consumption Operational: 11.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Angular Field of View (D, Max, Degree): 175
Angular Field of View (H, Max, Degree): 175
Angular Field of View (V, Max, Degree): 125
Focus Modes: Fixed focus
Infrared Distance: 49 ft
Infrared LEDs: Yes
Video Signals: USB
Tilt: -25 to +25
Motion Detection: Yes
Min Focus Distance: 11.8 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.0038 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.038 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 1.6 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2592 x 1944, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711 u-law, G.726
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 6.6 inch
Width: 3.1 inch
Depth: 2.2 inch
Weight: 21.16 ounce
