Product Information

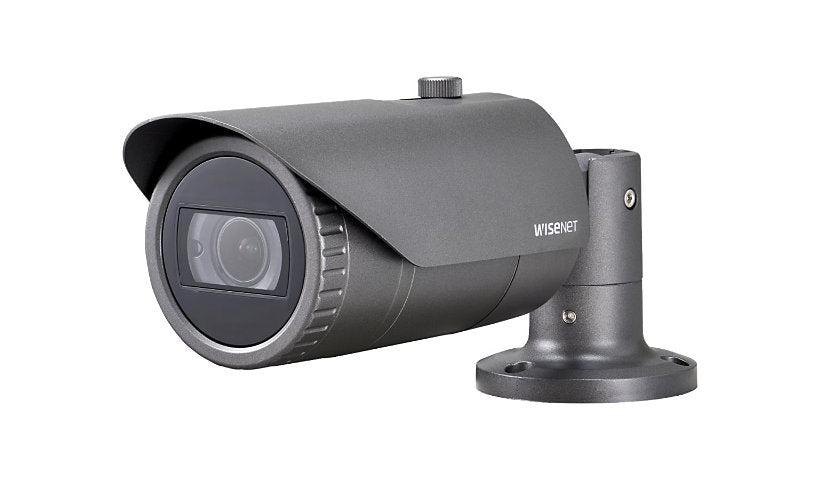

The Hanwha Vision WiseNet HD+ HCO-6070R is a 1080p analog HD outdoor camera that outputs AHD, TVI, CVI or composite over BNC, with a 3.2 to 10 mm manual varifocal lens. IR reaches 98 ft, it is IP66 and IK10 rated and runs on 12 V DC or 24 V AC at 6 W. Dark gray. It is an analog camera, not an IP camera.
Key Features
- 1080p analog HD
- AHD, TVI, CVI, CVBS
- 3.2 to 10 mm varifocal
- IR up to 98 ft
- 12 V DC or 24 V AC
- IP66, IK10, dark gray
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet HD+
Model: HCO-6070R
Packaged Quantity: 1
Color: Dark gray
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Features: Auto gain control, Auto white balance, Backlight Compensation (BLC), Defog, Infrared cut filter, Motion Detection Technology, Privacy Mask Function, Progressive scanning, Samsung Super Noise Reduction (SSNRIV), Wide Dynamic Range (WDR)
Connectivity
Ports: Composite video/AHD/TVI/CVI - BNC
Power
Low Voltage Power: DC 12 V / AC 24 V
Power Consumption Operational: 6 watt
Technical Information
Angular Field of View (D, Max, Degree): 128.4
Angular Field of View (H, Max, Degree): 110.2
Angular Field of View (V, Max, Degree): 55.4
Focus Modes: Manual
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: AHD, Composite video, CVI, TVI
Angular Field of View (D, Min, Degree): 36.6
Auto Iris Control: DC
Max Focal Length: 10 millimetre
Optical Zoom: 3.1
Sensor Pixels Effective (H): 1945
Sensor Pixels Effective (V): 1097
Alarm Output Quantity: 1
Camera Type: Surveillance camera
Sensor Pixels Total (H): 1945
Sensor Pixels Total (V): 1109
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 32
Angular Field of View (V, Min, Degree): 18
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.11 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 2,160,000 pixels
Video Modes: 1080/25p, 1080p
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Night Vision: Yes
Digital Video Capture Resolution: 1920 x 1080
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Vari-focal
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.1 inch
Width: 3.1 inch
Depth: 10.2 inch
Weight: 32.24 ounce
Certifications and Listing
Compliant Standards: IK10, IP66, Plug and Play
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
