Product Information

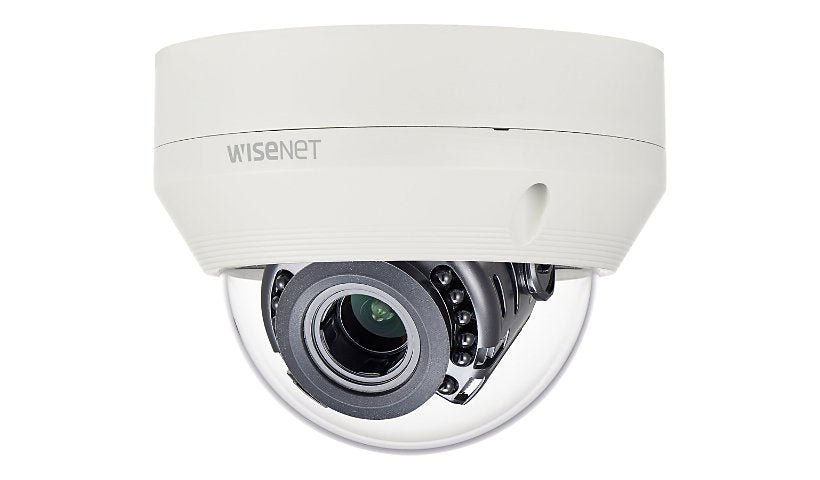

The Hanwha Vision Wisenet HD+ SCV-6085R is a 2 MP analog HD vandal proof dome that outputs AHD or composite video over BNC at 1080p30, with a 3.2 to 10 mm manual varifocal lens (3.1x). It has IR up to 98 ft, defog, D-WDR and alarm in and out, and runs on 12 V DC or 24 V AC. Ivory, outdoor. It is an analog camera, not an IP camera.
Key Features
- 1080p analog HD
- AHD and composite
- 3.2 to 10 mm varifocal
- IR up to 98 ft
- 12 V DC or 24 V AC
- Vandal proof, ivory
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet HD+
Model: SCV-6085R
Packaged Quantity: 1
Color: Ivory
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Auto white balance, Backlight Compensation (BLC), Defog, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Mask Function, Samsung Super Noise Reduction (SSNRIV)
Connectivity
Ports: Composite video - BNC
Power
Low Voltage Power: DC 12 V / AC 24 V
Technical Information
Angular Field of View (D, Max, Degree): 128.4
Angular Field of View (H, Max, Degree): 110.2
Angular Field of View (V, Max, Degree): 55.4
Focus Modes: Manual
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: AHD, Composite video
Angular Field of View (D, Min, Degree): 36.6
Auto Iris Control: DC
Max Focal Length: 10 millimetre
Optical Zoom: 3.1
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 1920 x 1080 @ 30 fps
Camera Type: Surveillance camera
Tilt: 0 to 67
Motion Detection: Yes
Panning Range (degree): 0 to 350
Angular Field of View (H, Min, Degree): 32
Angular Field of View (V, Min, Degree): 18
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.11 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Night Vision: Yes
Digital Video Capture Resolution: 1920 x 1080
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1 second (time unit)
Focal Length Control: Vari-focal
Video Input: Color
Rated Current: 0.46 ampere
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.2 inch
Width: 5.4 inch
Depth: 5.4 inch
Weight: 25.22 ounce
Certifications and Listing
Compliant Standards: IK10, IP66
