Product Information

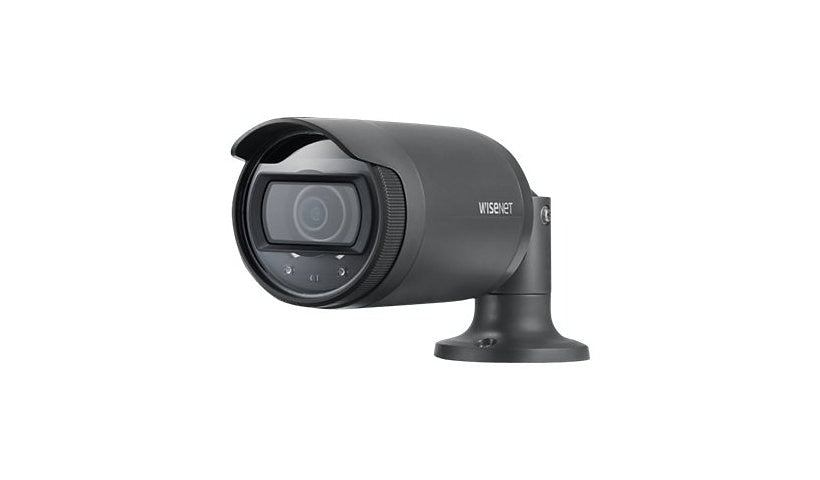

The Hanwha Vision Wisenet L LNO-6012R is a 2 MP outdoor camera recording 1080p at 30 fps through a 2.8 mm lens with a 113.7 degree view. IR reaches 98 ft, it supports Hallway View and lens distortion correction, and runs on PoE Class 2 at 6.4 W.
Key Features
- 2 MP, 1080p at 30 fps
- 2.8 mm, 113.7 degree view
- IR up to 98 ft
- Hallway View, LDC
- PoE Class 2, 6.4 W
- Outdoor
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet L
Model: LNO-6012R
Packaged Quantity: 1
Color: Dark gray
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14, Microsoft Windows 7, Windows 10, Windows 8.1
Features: Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Digest authentication, Hallway View, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Plastic housing, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE Class 2
Power Consumption Operational: 6.4 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card
Technical Information
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 134.4
Sensor Pixels Effective (H): 1945
Sensor Pixels Effective (V): 1097
Video Capture: 1920 x 1080 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 113.7
Angular Field of View (V, Min, Degree): 61.5
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.1 lux - color - F2.0 - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Focal Length Control: Fixed focal
Video Formats: H.264, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 10.3 inch
Width: 3.1 inch
Depth: 3.1 inch
Weight: 13.76 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
