Product Information

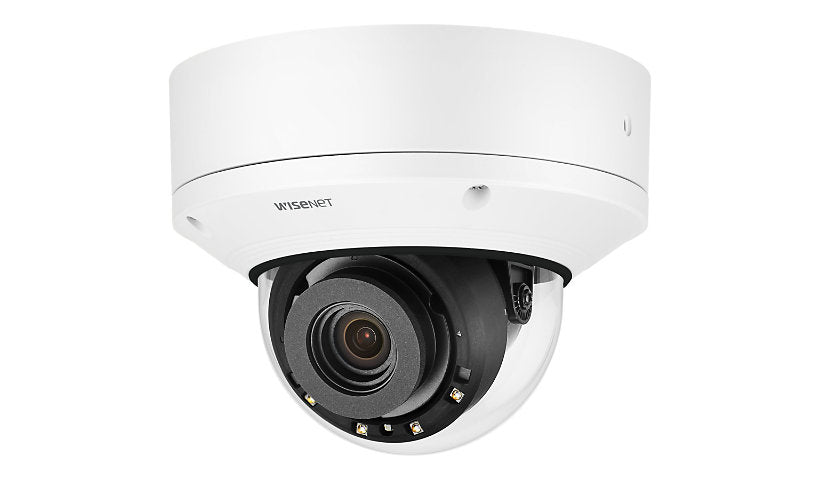

The Hanwha Vision Wisenet P PND-A6081RV is a 2 MP outdoor vandal proof dome recording 1080p at up to 120 fps with a 1/2 inch sensor and 4.38 to 9.33 mm motorized lens (2.13x). It has Best Shot, IR up to 131 ft, two way audio, composite out and alarm I/O, and runs on 12 V DC or PoE+ at 19.5 W. White.
Key Features
- 2 MP, 1080p up to 120 fps
- 4.38 to 9.33 mm motorized
- IR up to 131 ft
- Best Shot
- Two way audio, alarm I/O
- 12 V DC or PoE+
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PND-A6081RV
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Best Shot Selector (BSS), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Face Detection, Hallway View, Handover, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 19.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (D, Max, Degree): 124
Angular Field of View (H, Max, Degree): 103.1
Angular Field of View (V, Max, Degree): 54.2
Infrared Distance: 131 ft
Infrared LEDs: Yes
Video Signals: Composite video, USB
Angular Field of View (D, Min, Degree): 51.1
Auto Iris Control: P-Iris
Max Focal Length: 9.33 millimetre
Optical Zoom: 2.13
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 1920 x 1080 @ 120 fps
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 44.5
Angular Field of View (V, Min, Degree): 24.9
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.0007 lux - B&W - F1.3 - 30 IRE - shutter 1/30 sec, 0.0014 lux - B&W - F1.3 - 30 IRE - shutter 1/60 sec, 0.007 lux - color - F1.3 - 30 IRE - shutter 1/30 sec, 0.014 lux - color - F1.3 - 30 IRE - shutter 1/60 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.15
Min Focal Length: 4.38 millimetre
Sensor Size (metric): 12.7 mm (1/2")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 120 frames per second
Shutter Speed (Max): 1/120000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711u, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.9 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 3.53 lbs
