Product Information

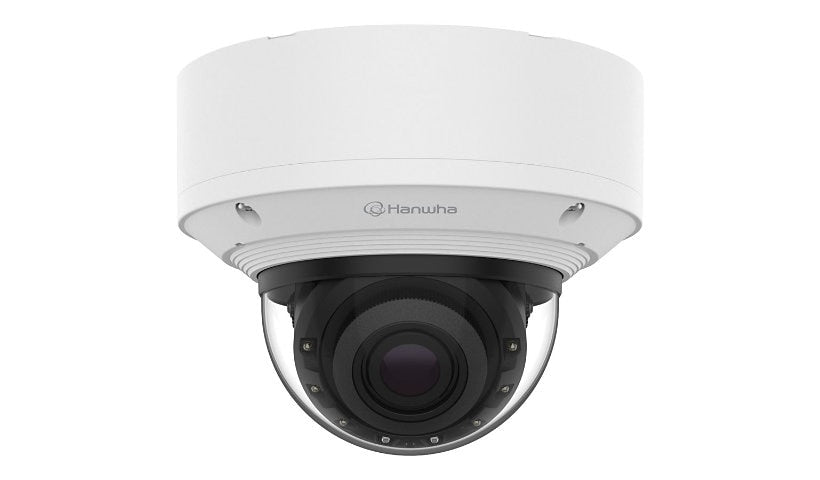

The Hanwha Vision WiseNet P PND-A9082RV is a 4K indoor AI dome with a large 1/2 inch sensor and 5.9 to 13.3 mm motorized lens (2.25x). It has AI analytics with face detection, defog, dynamic privacy masking, IR up to 197 ft, audio out and 8 GB flash, and runs on 12 V DC or PoE+ at 16.5 W. White.
Key Features
- 4K at 30 fps
- 1/2 inch sensor
- 5.9 to 13.3 mm motorized
- IR up to 197 ft
- AI, face detection
- 12 V DC or PoE+, indoor
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PND-A9082RV
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2
Features: 355° rotation, 850nm illuminator, AI-powered, Aluminum housing, Automatic White Balance Control (AWC), Backlight Compensation (BLC), Constant Bit Rate (CBR), Defog, Dynamic privacy masking, Enter area detection, Exit area detection, Face Detection, Hard-coated dome, Heat Map, Highlight Compensation (HLC), Intelligent Video Analysis (IVA), Lens Distortion Compensation (LDC), License plate detection, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy masking (up to 32 areas), Queue management, Samsung Super Dynamic Range (SSDR), Social distancing detection, Variable Bit Rate (VBR), Vehicle counting, Vehicle Detection, Virtual Line detection, WiseIR
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 16.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 128
Angular Field of View (H, Max, Degree): 109
Angular Field of View (V, Max, Degree): 59
Infrared Distance: 197 ft
Infrared LEDs: Yes
Video Signals: USB
Angular Field of View (D, Min, Degree): 56
Auto Iris Control: P-Iris
Max Focal Length: 13.3 millimetre
Optical Zoom: 2.25
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 49
Angular Field of View (V, Min, Degree): 27
Min Focus Distance: 31.5 inch
Minimum Illumination: 0.0015 lux - B&W - F1.5 - 30 IRE - shutter 1/30 sec, 0.015 lux - color - F1.5 - 30 IRE - shutter 1/30 sec
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/2"
Lens Aperture: F/1.5-2.9
Min Focal Length: 5.9 millimetre
Sensor Size (metric): 12.7 mm (1/2")
Digital Video Capture Resolution: 1024 x 768, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2592 x 1944, 2688 x 1512, 3072 x 1728, 320 x 180, 320 x 240, 3328 x 1872, 3840 x 2160, 640 x 360, 640 x 480, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/30000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, G.711, G.726, OPUS
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 100% RH
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.9 inch
Width: 6.3 inch
Depth: 6.3 inch
Weight: 3.42 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
