Product Information

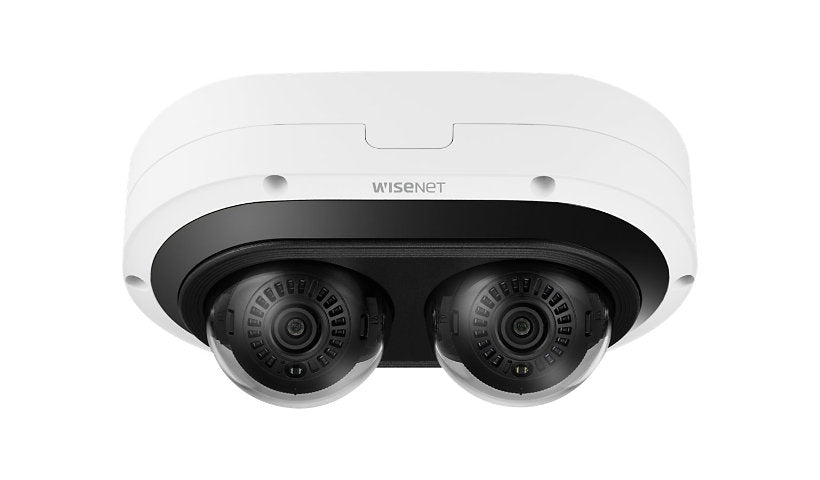

The Hanwha Vision Wisenet P PNM-C12083RVD is a two sensor multidirectional dome with two 6 MP 1/2.8 inch sensors recording 3328 x 1872 at 15 fps through 3.54 to 6.69 mm motorized autofocus lenses. IR reaches 82 ft, it has AI based events, Extreme WDR and FIPS 140-2, and runs on PoE+ Class 4 at 16.5 W. White.
Key Features
- Two 6 MP sensors
- 3328 x 1872 at 15 fps
- 3.54 to 6.69 mm motorized
- IR up to 82 ft
- AI events, FIPS 140-2
- PoE+ Class 4, 16.5 W
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PNM-C12083RVD
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Anti-flicker, Auto gain control, Auto ICR, Auto white balance, Backlight Compensation (BLC), Defocus Detection, Digest authentication, Extreme WDR, Hallway View, Handover, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, Object classification, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Tamper-detection, TPM 2.0 module, Trigger recording, Unicast Streaming, User access log, Vehicle type classification, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: PoE Plus Class 4
Power Consumption Operational: 16.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Focus Modes: Automatic
Infrared Distance: 82 ft
Infrared LEDs: Yes
Video Signals: USB
Max Focal Length: 6.69 millimetre
Optical Zoom: 1.9
Tilt: 0 to 78
Motion Detection: Yes
Panning Range (degree): 0 to 355
Camera Iris: Fixed iris
Min Focus Distance: 59.1 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.016 lux - B&W - F1.67 - 30 IRE - shutter 1/30 sec, 0.16 lux - color - F1.67 - 30 IRE - shutter 1/30 sec
Total Pixels: 2 x 6,000,000 pixels
Image Sensor Size: 2 x 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.67-2.64
Min Focal Length: 3.54 millimetre
Sensor Size (metric): 2 x 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2592 x 1944, 2688 x 1520, 3072 x 1728, 320 x 240, 3328 x 1872, 640 x 360, 640 x 480, 720 x 480, 800 x 448, 800 x 600
Max Frame Rate: 15 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 3328 x 1872
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 3.7 inch
Width: 8.5 inch
Depth: 5.3 inch
Weight: 2.93 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
