Product Information

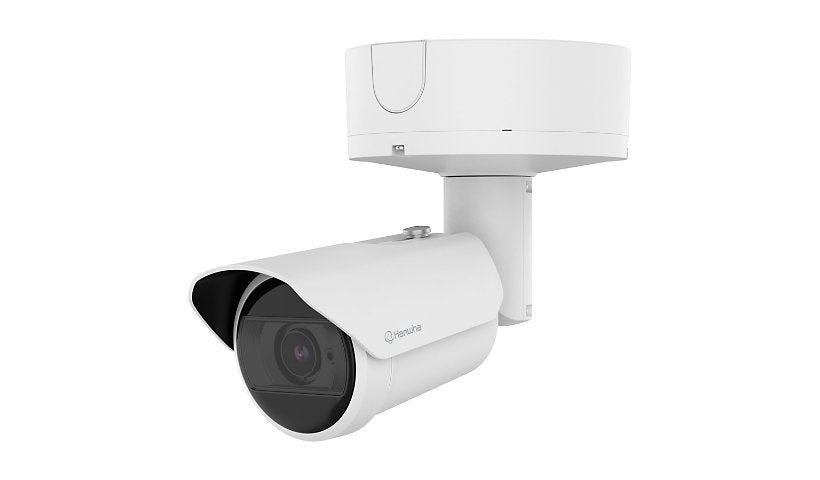

The Hanwha Vision WiseNet P PNO-A7082R is a 4 MP outdoor AI bullet recording 2592 x 1520 at up to 60 fps with a 1/1.8 inch sensor and 4.6 to 9.35 mm motorized lens (2x). It has AI attribute recognition, 120 dB WDR, a gyroscope, IR up to 197 ft, audio in and out and 8 GB flash, on 12 V DC or PoE+ at 15 W. IP66/IP67, white.
Key Features
- 4 MP, up to 60 fps
- 4.6 to 9.35 mm motorized
- IR up to 197 ft
- AI attribute recognition
- 120 dB WDR, gyroscope
- 12 V DC or PoE+
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PNO-A7082R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 120 dB wide dynamic range, 180° Rotation, 850nm illuminator, Age recognition, AI-powered, Aluminum housing, Backlight Compensation (BLC), Bag detection, Built-in gyroscope, Clothing color recognition, Constant Bit Rate (CBR), Crowd counting, Defocus Detection, Digital Image Stabilization (DIS), Dynamic privacy masking, Face Detection, Fog detection, Gender recognition, Glasses detection, Handover, Hard-coated window, Heat Map, Highlight Compensation (HLC), Lens Distortion Compensation (LDC), License plate detection, Line Crossing Detection, Mask detection, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy masking (up to 32 areas), Queue management, Samsung Super Dynamic Range (SSDR), Sound classification, Tampering detection, Variable Bit Rate (VBR), Vehicle color recognition, Vehicle counting, Vehicle Detection, Vehicle type classification, White balance, WiseNR II, WiseStream support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line in, Audio line out, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 15 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 128
Angular Field of View (H, Max, Degree): 105
Angular Field of View (V, Max, Degree): 58
Infrared Distance: 197 ft
Infrared LEDs: Yes
Video Signals: USB
Angular Field of View (D, Min, Degree): 55
Auto Iris Control: P-Iris
Max Focal Length: 9.35 millimetre
Optical Zoom: 2
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 47
Angular Field of View (V, Min, Degree): 27
Min Focus Distance: 5 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.03 lux - color - F1.3
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.15
Min Focal Length: 4.6 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2592 x 1520, 320 x 180, 320 x 240, 640 x 360, 640 x 480, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/30000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, OPUS, PCM
Touchscreen: No
Max Video Resolution: 2592 x 1520
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 100% (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-resistant
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 3.7 inch
Depth: 11.7 inch
Weight: 4.54 lbs
