Product Information

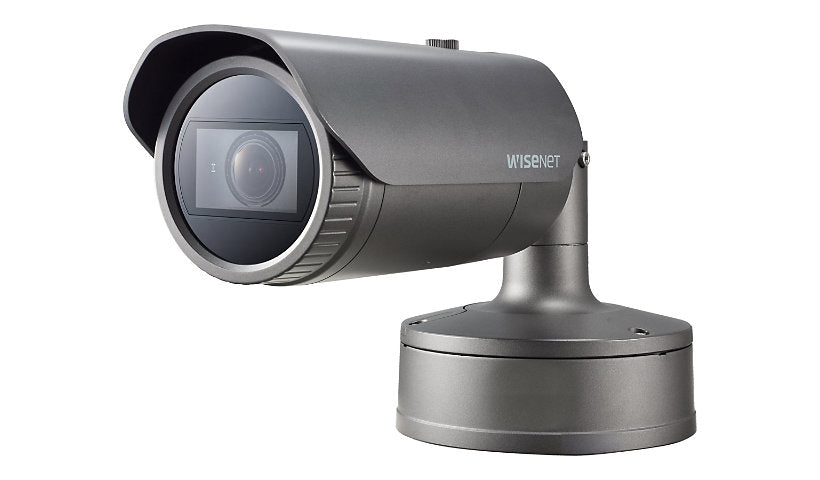

The Hanwha Vision Wisenet P PNO-A9081R is a 4K AI camera recording 3840 x 2160 at 30 fps with a 4.5 to 10 mm motorized lens (2.2x). AI filters out motion from trees, shadows and animals so alarms come from people and vehicles, with BestShot, IR up to 98 ft, audio in and out, composite out and alarm I/O. 12 V DC or PoE+ at 18 W. Dark gray.
Key Features
- 4K at 30 fps
- 4.5 to 10 mm motorized
- AI people and vehicle
- IR up to 98 ft
- Audio, alarm I/O
- 12 V DC or PoE+, 18 W
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PNO-A9081R
Packaged Quantity: 1
Color: Dark gray
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14, Windows 10, Windows 8.1
Features: Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Camera Tampering Detection, Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Digital auto tracking, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Hallway View, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), License plate tracking, Loitering detection, Mask detection, Motion Detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Sound classification, Unicast Streaming, Variable Bit Rate (VBR), Vehicle Detection, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 18 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 512 megabyte
Technical Information
Angular Field of View (D, Max, Degree): 120.7
Angular Field of View (H, Max, Degree): 101.4
Angular Field of View (V, Max, Degree): 53.6
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 52.3
Auto Iris Control: DC, P-Iris
Max Focal Length: 10 millimetre
Optical Zoom: 2.2
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 3840 x 2160 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 45.5
Angular Field of View (V, Min, Degree): 25.5
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.05 lux - color - F1.6 - shutter 1/30 sec
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-2.65
Min Focal Length: 4.5 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, U-LAW
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Physical Characteristics
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 14.5 inch
Width: 3.6 inch
Depth: 3.6 inch
Weight: 5.47 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
