Product Information

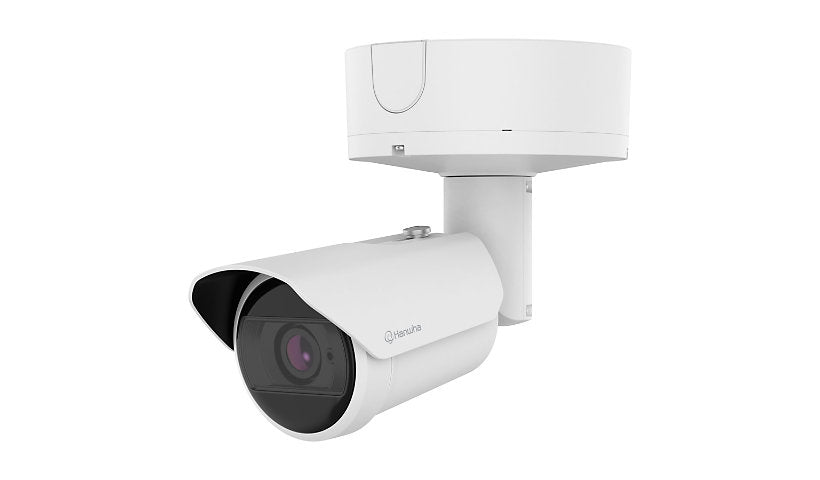

The Hanwha Vision WiseNet P PNO-A9082R is a 4K AI bullet with a large 1/1.2 inch sensor and 5.9 to 13.3 mm motorized lens (2.25x) with remote positioning. It has AI attribute recognition, IR up to 197 ft, audio in and out, alarm I/O, USB-C and 8 GB flash, and runs on 12 V DC or PoE+ Class 4. White.
Key Features
- 4K at 30 fps
- 1/1.2 inch sensor
- 5.9 to 13.3 mm motorized
- IR up to 197 ft
- AI attribute recognition
- 12 V DC or PoE+
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PNO-A9082R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2
Features: 0° / 180° rotation, Age recognition, Alarm event, Aluminum housing, Anti-flicker, Appearing / disappearing detection, Audio Detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Bag detection, Clothes color detection, Constant Bit Rate (CBR), Crowd counting, Defog, Digital Image Stabilization (DIS), Digital Noise Reduction, Dynamic privacy masking, E-mail alerts, Entrance / exit detection, Face Recognition, Gender recognition, Glasses detection, Hallway View, Handover, Hard-coated window, Heat Map, Highlight Compensation (HLC), Intrusion detection, Lens Distortion Compensation (LDC), Line-crossing detection, Loitering detection, Mask detection, Notification picture to FTP, Object classification, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy masking (up to 32 areas), Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Shock sensor, Social distancing detection, Tamper-detection, Variable Bit Rate (VBR), Vehicle color recognition, Vehicle counting, Vehicle type classification, Vertical flip and mirror, Wide Dynamic Range (WDR), WiseNR II
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, Syslog, TCP, TCP/IP, TLS, UDP, UDP/IP, UPnP
Ports: Audio line in, Audio line out, LAN/power - RJ-45, USB - 24-pin USB-C
Power
Low Voltage Power: DC 12 V / PoE Plus Class 4
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 128
Angular Field of View (H, Max, Degree): 109
Angular Field of View (V, Max, Degree): 59
Infrared Distance: 197 ft
Infrared LEDs: Yes
Video Signals: USB
Angular Field of View (D, Min, Degree): 56
Auto Iris Control: P-Iris
Max Focal Length: 13.3 millimetre
Optical Zoom: 2.25
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: 0 to 90
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 49
Angular Field of View (V, Min, Degree): 27
Min Focus Distance: 31.5 inch
Minimum Illumination: 0 lux - IR - infrared LEDs on, 0.0015 lux - B&W - 30 IRE - shutter 1/30 sec, 0.015 lux - color - 30 IRE - shutter 1/30 sec
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/1.2"
Image Sensor Type: CMOS
Lens Aperture: F/1.5-2.9
Min Focal Length: 5.9 millimetre
Sensor Size (metric): 21.2 mm (1/1.2")
Digital Video Capture Resolution: 1024 x 768, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2592 x 1944, 2688 x 1512, 3072 x 1728, 320 x 180, 320 x 240, 3328 x 1872, 3840 x 2160, 640 x 360, 640 x 480, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/30000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711, G.726, OPUS, PCM
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 100% (condensing)
Physical Characteristics
Form Factor: Bullet
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 3.7 inch
Width: 3.7 inch
Depth: 11.7 inch
Weight: 4.54 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
