Product Information

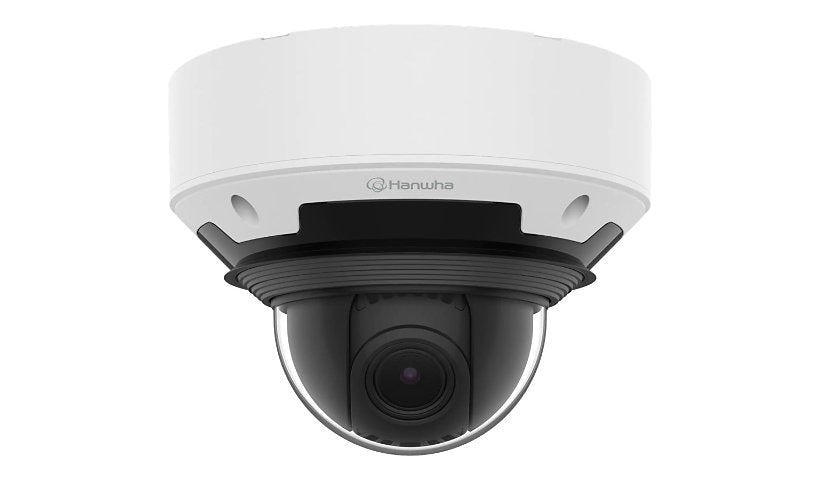

The Hanwha Vision WiseNet P PNV-A7082RZ Gen 2 is a 4 MP outdoor vandal resistant AI dome recording 2592 x 1520 at up to 60 fps with a 1/1.8 inch sensor and 4.6 to 9.35 mm motorized lens with remote pan, tilt, roll and zoom. It offers 120 dB WDR, AI attribute recognition such as clothing color and bags, a gyroscope, IR up to 98 ft and audio, on 12 V DC or PoE+ at 15 W. IP66/IP67, white.
Key Features
- 4 MP, up to 60 fps
- 4.6 to 9.35 mm, PTRZ
- AI attribute recognition
- IR up to 98 ft
- 120 dB WDR, gyroscope
- 12 V DC or PoE+, IP67
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PNV-A7082RZ
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 120 dB wide dynamic range, 850nm illuminator, Age recognition, AI-powered, Backlight Compensation (BLC), Bag detection, Built-in gyroscope, Clothing color recognition, Constant Bit Rate (CBR), Crowd counting, Defocus Detection, Digital Image Stabilization (DIS), Dynamic privacy masking, Face Detection, Fog detection, Gender recognition, Glasses detection, Handover, Hard-coated window, Heat Map, Highlight Compensation (HLC), License plate detection, Line Crossing Detection, Mask detection, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Queue management, Samsung Super Dynamic Range (SSDR), Sound classification, Tampering detection, Variable Bit Rate (VBR), Vehicle color recognition, Vehicle counting, Vehicle Detection, Vehicle type classification, White balance, WiseNR II, WiseStream support
Edition: Gen 2
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45, USB
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 15 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Angular Field of View (D, Max, Degree): 128
Angular Field of View (H, Max, Degree): 105
Angular Field of View (V, Max, Degree): 58
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 55
Auto Iris Control: P-Iris
Max Focal Length: 9.35 millimetre
Optical Zoom: 2
Tilt: -45 to +85
Panning Range (degree): 0 to 350
Angular Field of View (H, Min, Degree): 47
Angular Field of View (V, Min, Degree): 27
Min Focus Distance: 5 ft
Minimum Illumination: 0.003 lux - B&W - shutter 1/30 sec, 0.03 lux - color - shutter 1/30 sec
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.3-2.15
Min Focal Length: 4.6 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2560 x 1440, 2592 x 1520, 320 x 180, 320 x 240, 640 x 360, 640 x 480, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/30000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Touchscreen: No
Max Video Resolution: 2592 x 1520
Min Operating Temperature: -58 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 100% (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-resistant
Form Factor: Dome
Camera Mechanical Design: Pan / tilt / roll / zoom
Dimensions and Weight
Height: 5.3 inch
Width: 7.1 inch
Depth: 7.1 inch
Weight: 4.63 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
