Product Information

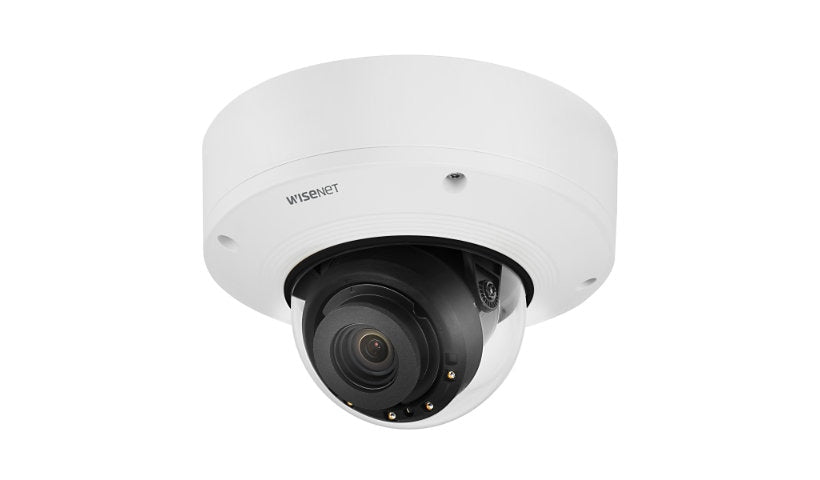

The Hanwha Vision WiseNet P PNV-A9081RLP is a 4K outdoor vandal proof dome for license plate recognition with Wisenet Road AI, recording 3840 x 2160 at 30 fps with a 4.5 to 10 mm motorized lens (2.2x). It has IR up to 98 ft, Best Shot, two way audio, composite out and alarm I/O, on 12 V DC or PoE+ at 20 W.
Key Features
- 4K at 30 fps
- Wisenet Road AI LPR
- 4.5 to 10 mm motorized
- IR up to 98 ft
- Two way audio, alarm I/O
- 12 V DC or PoE+
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet P
Model: PNV-A9081RLP
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: Aluminum housing, Appearing / disappearing detection, Audio Detection, Auto gain control, Auto white balance, Backlight Compensation (BLC), Best Shot Selector (BSS), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Digital Image Stabilization (DIS), Directional Detection, Entrance / exit detection, Face Detection, Hallway View, Image flip, Image mirror, IP address filtering, Lens Distortion Compensation (LDC), License plate recognition (LPR), Loitering detection, Motion Detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Shock detection, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle make recognition, Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Software Type: Wisenet Road AI
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line out, Audio line-in/microphone, Composite video, LAN/power, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Plus
Power Consumption Operational: 20 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (D, Max, Degree): 120.7
Angular Field of View (H, Max, Degree): 101.4
Angular Field of View (V, Max, Degree): 53.6
Infrared Distance: 98 ft
Infrared LEDs: Yes
Video Signals: Composite video, USB
Angular Field of View (D, Min, Degree): 52.3
Auto Iris Control: DC, P-Iris
Max Focal Length: 10 millimetre
Optical Zoom: 2.2
Sensor Pixels Effective (H): 3864
Sensor Pixels Effective (V): 2180
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 3840 x 2160 @ 30 fps
Tilt: -45 to +85
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 45.5
Angular Field of View (V, Min, Degree): 25.5
Camera Iris: Auto iris
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.05 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 8,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-2.65
Min Focal Length: 4.5 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1600 x 1200, 1920 x 1080, 2048 x 1536, 2560 x 1440, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3840 x 2160, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/120000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711u, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.9 inch
Width: 7.1 inch
Depth: 7.1 inch
Weight: 4.19 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
