Product Information

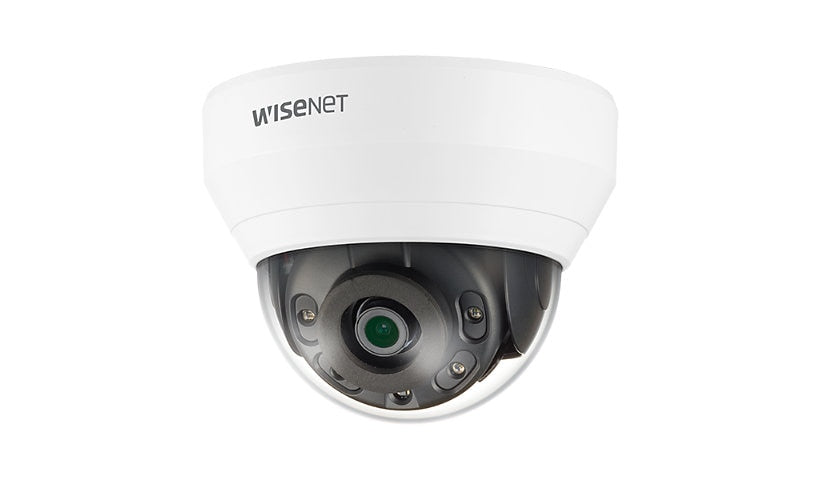

The Hanwha Vision Wisenet Q QND-7022R is a 4 MP dome recording 2560 x 1440 at 30 fps through a 4 mm lens with a 78.2 degree view. It has IR up to 66 ft, a built in mic, LDC, direction and entrance detection, BNC video out and alarm I/O, and runs on 12 V DC or PoE Class 3. White.
Key Features
- 4 MP, 2560 x 1440
- 4 mm, 78.2 degree view
- IR up to 66 ft, mic
- LDC, direction detection
- BNC out, alarm I/O
- 12 V DC or PoE Class 3
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QND-7022R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Alarm function, Anti-flicker, Auto ICR, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Direction detection, Entrance / exit detection, Gain Control, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection, Multicast Streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Tamper-detection, Unicast Streaming, User access log, Variable Bit Rate (VBR), Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Composite video - BNC, LAN/power - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Class 3
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Angular Field of View (D, Max, Degree): 92
Angular Field of View (H, Max, Degree): 78.2
Angular Field of View (V, Max, Degree): 41.2
Focus Modes: Fixed focus
Infrared Distance: 66 ft
Infrared LEDs: Yes
Video Signals: Composite video
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: 0 to 67
Motion Detection: Yes
Panning Range (degree): 0 to 350
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.15 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 4,000,000 pixels
Image Sensor Size: 1/3"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 4 millimetre
Sensor Size (metric): 8.5 mm (1/3")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: ADPCM, G.711u, G.726
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 2560 x 1440
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.4 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 8.99 ounce
