Product Information

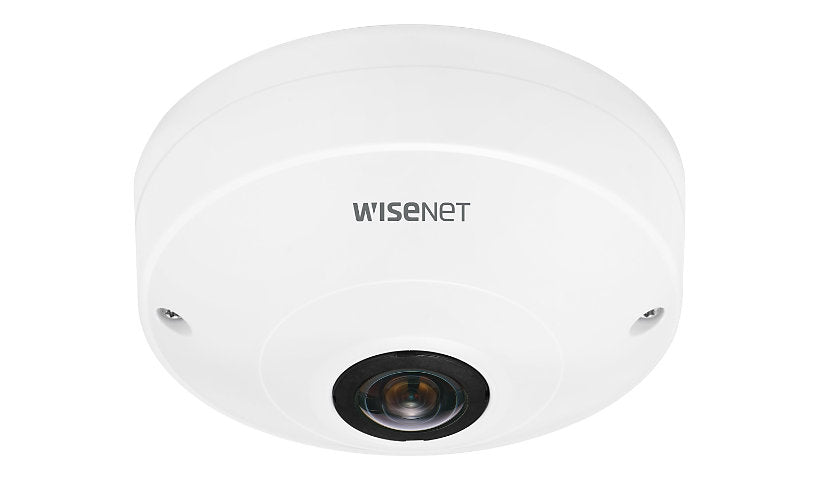

The Hanwha Vision Wisenet Q QNF-8010 is an indoor fisheye with a 1/1.8 inch sensor recording 2048 x 2048 at 30 fps through a 1.14 mm lens with a 187 degree view. It has heat map, defocus detection and composite out, and runs on PoE Class 3 at 6.4 W. White. Total pixels are listed as 6 MP.
Key Features
- 2048 x 2048 at 30 fps
- 187 degree fisheye
- Heat map
- Composite out
- PoE Class 3, 6.4 W
- Indoor, white
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNF-8010
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12 - 10.14, Microsoft Windows 7, Windows 10, Windows 8.1
Features: Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Fisheye lens, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Plastic housing, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Composite video, LAN/power - RJ-45
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 6.4 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 187
Sensor Pixels Effective (H): 2048
Sensor Pixels Effective (V): 2048
Video Capture: 2048 x 2048 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 187
Angular Field of View (V, Min, Degree): 187
Min Focus Distance: 11.8 inch
Minimum Illumination: 0.2 lux - color - F2.5 - shutter 1/30 sec
Total Pixels: 6,000,000 pixels
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.5
Min Focal Length: 1.14 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 1024 x 768, 1080 x 1080, 1280 x 1280, 1280 x 320, 1280 x 640, 1280 x 960, 1600 x 1200, 1920 x 480, 1920 x 960, 2048 x 1024, 2048 x 1536, 2048 x 2048, 2048 x 512, 480 x 480, 640 x 160, 640 x 320, 640 x 480, 640 x 640, 704 x 176, 704 x 352, 704 x 576, 720 x 720, 768 x 768, 800 x 600, 960 x 960
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 2048 x 2048
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 1.9 inch
Width: 3.9 inch
Depth: 3.9 inch
Weight: 11.29 ounce
