Product Information

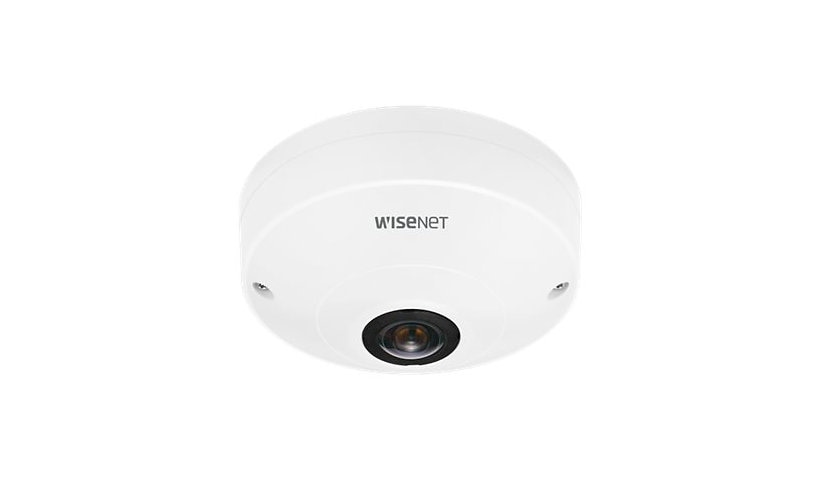

The Hanwha Vision Wisenet Q QNF-9010 is a 12 MP indoor fisheye recording 3008 x 3008 at 30 fps through a 1.08 mm lens with a 187 degree view, so one camera can watch a whole store. It has heat map, multiple view modes, defocus detection and composite out, and runs on PoE Class 3 at 7.7 W. White.
Key Features
- 12 MP, 3008 x 3008
- 187 degree fisheye
- Heat map
- Multiple view modes
- Composite out
- PoE Class 3, indoor
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNF-9010
Packaged Quantity: 1
Color: White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple macOS 10.12 - 10.14, Microsoft Windows 7, Windows 10, Windows 8.1
Features: Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Fisheye lens, Heat Map, Highlight Compensation (HLC), Image flip, Image mirror, IP address filtering, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Plastic housing, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Tamper-detection, Variable Bit Rate (VBR), Video analytics, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Composite video, LAN/power - RJ-45
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 7.7 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 187
Sensor Pixels Effective (H): 3008
Sensor Pixels Effective (V): 3008
Video Capture: 3008 x 3008 @ 30 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 187
Angular Field of View (V, Min, Degree): 187
Min Focus Distance: 19.7 inch
Minimum Illumination: 0.39 lux - color - F2.2 - shutter 1/30 sec
Total Pixels: 12,000,000 pixels
Image Sensor Size: 1/2.3"
Image Sensor Type: CMOS
Lens Aperture: F/2.2
Min Focal Length: 1.08 millimetre
Sensor Size (metric): 11 mm (1/2.3")
Digital Video Capture Resolution: 1024 x 256, 1024 x 512, 1024 x 768, 1280 x 320, 1280 x 640, 1280 x 960, 1920 x 1440, 1920 x 480, 1920 x 960, 2560 x 1280, 2560 x 1920, 2560 x 640, 3008 x 3008, 3200 x 800, 640 x 320, 640 x 480, 640 x 640
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Max Video Resolution: 3008 x 3008
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 1.9 inch
Width: 3.9 inch
Depth: 3.9 inch
Weight: 13.05 ounce
