Product Information

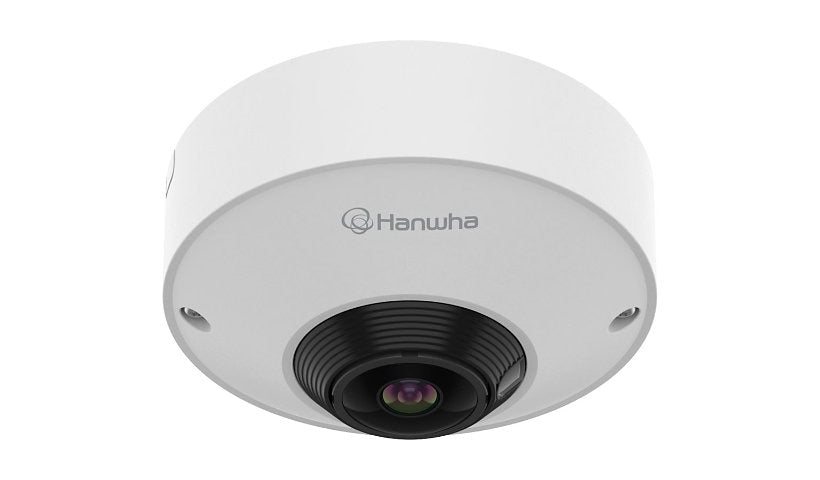

The Hanwha Vision WiseNet Q QNF-C9010 is a 12 MP fisheye recording 3584 x 2688 at up to 20 fps through a 1.76 mm lens with a 185 degree view. It has Best Shot and appear and disappear detection in an aluminum housing, and runs on PoE Class 3 at 7.3 W. White.
Key Features
- 12 MP, 3584 x 2688
- 185 degree fisheye
- Best Shot
- Aluminum housing
- PoE Class 3, 7.3 W
- White
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNF-C9010
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2
Features: 802.1x authentication, Access Control, Alarm event, Aluminum housing, Appearing / disappearing detection, Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Best Shot Selector (BSS), Clothes color detection, Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Direction detection, E-mail alerts, Electronic shutter, Entrance / exit detection, Firmware encryption, Gain Control, Heat Map, Image flip, Image mirror, Intrusion detection, Lens Distortion Compensation (LDC), Line Crossing Detection, Loitering detection, Manual white balance, Motion Detection, Multicast Streaming, Network disconnection trigger, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Secure Boot, Signed firmware, Smart Codec, Tampering detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle color recognition, Vehicle Detection, Video analytics, Virtual Line detection, White balance, Wide Dynamic Range (WDR), WiseNR II, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, SUNAPI, TCP, TCP/IP, TLS, UDP, UDP/IP, UPnP
Ports: LAN/power - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 7.3 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Video Signals: USB
Angular Field of View (D, Min, Degree): 185
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 185
Angular Field of View (V, Min, Degree): 185
Min Focus Distance: 19.7 inch
Minimum Illumination: 0.001 lux - B&W - F1.8 - shutter 1/30 sec, 0.02 lux - color - F1.8 - shutter 1/30 sec
Total Pixels: 12,000,000 pixels
Image Sensor Size: 1/6"
Image Sensor Type: CMOS
Lens Aperture: F/1.8
Min Focal Length: 1.76 millimetre
Sensor Size (metric): 4.2 mm (1/6")
Digital Video Capture Resolution: 1024 x 256, 1024 x 512, 1024 x 768, 1280 x 1280, 1280 x 320, 1280 x 640, 1504 x 1504, 1792 x 1344, 1920 x 1920, 1920 x 480, 1920 x 960, 2048 x 1536, 2560 x 2560, 3008 x 3008, 3584 x 1792, 3584 x 2688, 3584 x 896, 480 x 480, 512 x 384, 640 x 160, 640 x 320, 640 x 640, 768 x 576, 800 x 800
Max Frame Rate: 20 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 3584 x 2688
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% RH
Physical Characteristics
Form Factor: Fisheye
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 2 inch
Width: 3.9 inch
Depth: 3.9 inch
Weight: 12.7 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
