Product Information

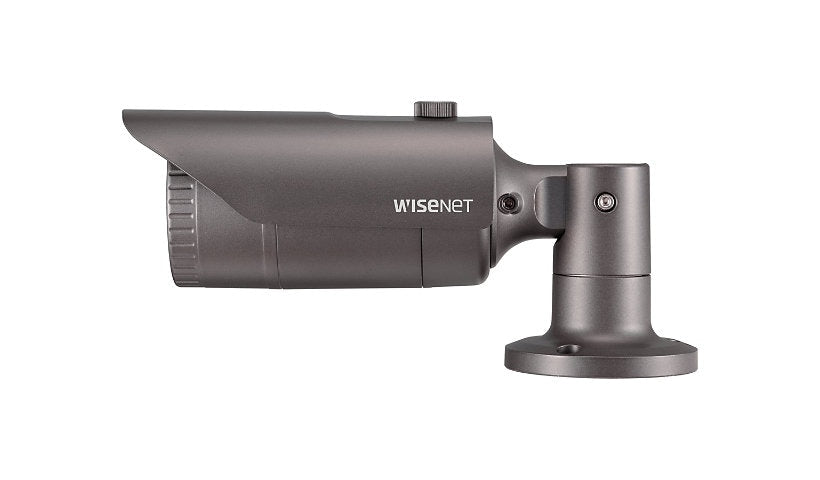

The Hanwha Vision Wisenet Q QNO-8020R is a 5 MP camera recording 2592 x 1944 at 30 fps with a 4 mm F1.6 lens (79.8 degree view) and WiseStream II. IR reaches 82 ft, it has defocus and direction detection, composite out and alarm I/O in an aluminum housing, and runs on PoE Class 3 at 7.5 W. Dark gray.
Key Features
- 5 MP, 2592 x 1944 at 30 fps
- 4 mm, 79.8 degree view
- IR up to 82 ft
- WiseStream II
- Composite out, alarm I/O
- PoE Class 3, dark gray
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNO-8020R
Packaged Quantity: 1
Color: Dark gray
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Operating System Required: Apple MacOS X 10.10 - 10.14, Microsoft Windows 7 / 8.1 / 10
Features: Aluminum housing, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Direction detection, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Composite video, LAN/power - RJ-45
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 7.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Infrared Distance: 82 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 105.9
Sensor Pixels Effective (H): 2592
Sensor Pixels Effective (V): 1944
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Tilt: 0 to 67
Motion Detection: Yes
Panning Range (degree): 0 to 350
Angular Field of View (H, Min, Degree): 79.8
Angular Field of View (V, Min, Degree): 58.1
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.15 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2592 x 1944, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG, NTSC, PAL
Video Input: Color
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 9.7 inch
Width: 2.8 inch
Depth: 2.8 inch
Weight: 23.98 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
