Product Information

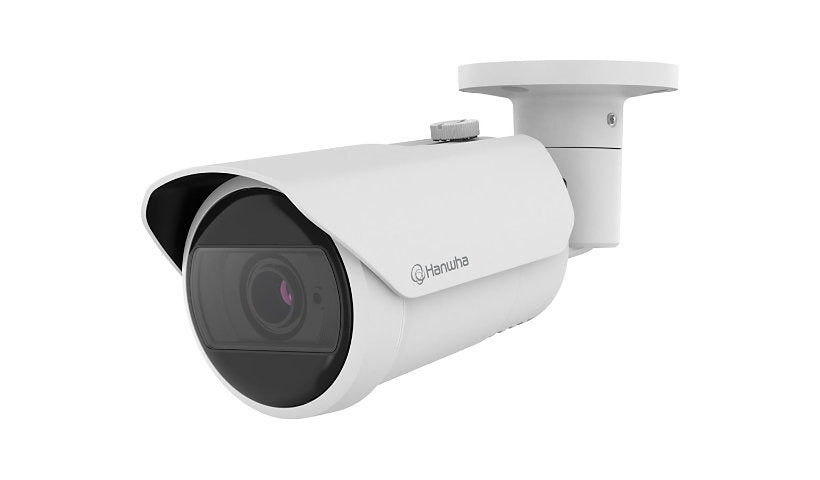

The Hanwha Vision Wisenet Q QNO-C6083R is a 2 MP bullet recording 1080p at 30 fps with a 3.2 to 10.2 mm motorized varifocal lens (3.2x). It has AI person detection, IR up to 131 ft, two way audio and alarm I/O, and runs on PoE Class 3 at 8.9 W from -40 to 55 C. Mounting kit and sunshield included.
Key Features
- 2 MP, 1080p at 30 fps
- 3.2 to 10.2 mm, 3.2x
- AI person detection
- IR up to 131 ft
- Two way audio, alarm I/O
- Sunshield included
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNO-C6083R
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 360° Rotation, 802.1x authentication, AI Analytics, AI Person Detection, Appearing / disappearing detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Entrance / exit detection, Event Notification, Firmware encryption, Gain Control, Hallway View, Handover, Heat Map, Highlight Compensation (HLC), Intrusion detection, Lens Distortion Compensation (LDC), Line Crossing Detection, Loitering detection, Multicast Streaming, Network disconnection trigger, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Signed firmware, Unicast Streaming, Variable Bit Rate (VBR), Vehicle counting, Vehicle type classification, Vertical flip and mirror, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-T
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PIM-SM, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: 2 x audio line in/line out - RCA, Alarm I/O, LAN - RJ-45, USB - Micro-USB Type B
Host Interface: USB
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 8.9 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Angular Field of View (D, Max, Degree): 119
Angular Field of View (H, Max, Degree): 102
Angular Field of View (V, Max, Degree): 54.2
Focus Modes: Manual, Motorized
Infrared Distance: 131 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 36.7
Auto Iris Control: DC, Motorized Iris
Max Focal Length: 10.2 millimetre
Optical Zoom: 3.2
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 1920 x 1080 @ 30 fps
Tilt: 0 to 100
Motion Detection: Yes
Panning Range (degree): 0 to 360
Angular Field of View (H, Min, Degree): 32.2
Angular Field of View (V, Min, Degree): 18.3
Camera Iris: Auto iris
Min Focus Distance: 47.2 inch
Minimum Illumination: 0 lux - IR, 0.004 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.1
Min Focal Length: 3.2 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/25000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Support: Yes
Audio Formats: AAC-LC, ADPCM, G.711 u-law, G.726
Audio Support Features: Two-way audio capability
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 3.7 inch
Depth: 9.7 inch
Weight: 32.8 ounce
Included Items
Included Accessories: Mounting kit, Sunshield
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
