Product Information

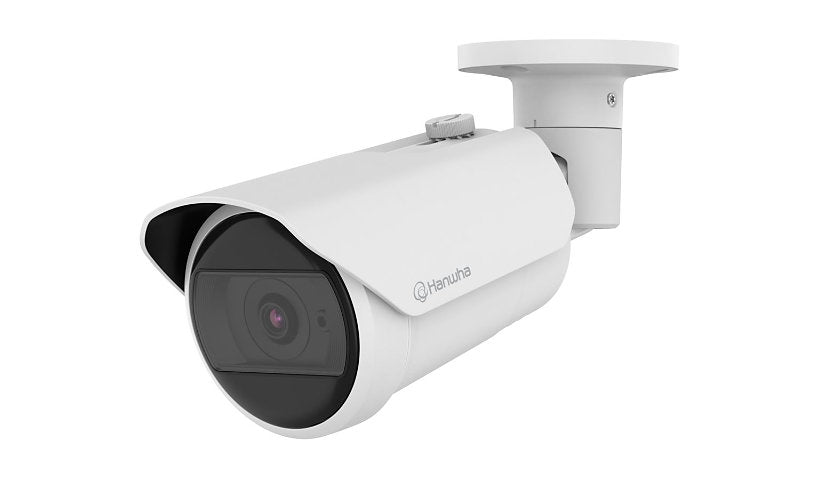

The Hanwha Vision WiseNet Q QNO-C8013R is a 5 MP outdoor bullet camera recording 2592 x 1944 at 30 fps through a 1/2.8 inch CMOS sensor and fixed 3 mm F1.6 lens with a 100 degree horizontal view. IR reaches 82 ft, it streams H.265, H.264 and MJPEG, takes microSD and runs on PoE Class 3 at 8.1 W. The aluminum housing is IP66 and IK10 rated for -30 to 55 C.
Key Features
- 5 MP, 2592 x 1944 at 30 fps
- Fixed 3 mm F1.6, 100 degree H
- IR up to 82 ft
- H.265, H.264, MJPEG
- PoE Class 3, 8.1 W, microSD
- IP66, IK10, -30 to 55 C
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNO-C8013R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Encryption: EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2
Features: 360° Rotation, Access Control, Alarm notifications, Aluminum housing, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Best Shot Selector (BSS), Clothes color detection, Color identification, Constant Bit Rate (CBR), Defocus Detection, Digest authentication, Digital PTZ function, Dynamic privacy masking, Electronic shutter, Entrance / exit detection, Firmware encryption, Gain Control, Hallway View, Hard-coated dome, Heat Map, Image flip, Image mirror, Lens Distortion Compensation (LDC), Line Crossing Detection, Loitering detection, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Secure Boot, Signed firmware, Smart Codec, Tampering detection, Variable Bit Rate (VBR), Vehicle color recognition, Vehicle counting, Vehicle Detection, White balance, Wide Dynamic Range (WDR), WiseNR II, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, CDP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP, TCP/IP, TLS, UDP, UDP/IP, UPnP
Ports: Alarm I/O, Audio line-in/microphone, LAN - RJ-45, USB - Micro-USB Type B
Power
Low Voltage Power: PoE Class 3
Power Consumption Operational: 8.1 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Angular Field of View (D, Max, Degree): 129
Angular Field of View (H, Max, Degree): 100
Angular Field of View (V, Max, Degree): 73
Focus Modes: Fixed focus
Infrared Distance: 82 ft
Infrared LEDs: Yes
Tilt: 0 to 100
Motion Detection: Yes
Panning Range (degree): 0 to 360
Camera Iris: Fixed iris
Min Focus Distance: 0.2 inch
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.005 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.05 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2592 x 1944, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/25000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Audio Formats: AAC-LC, ADPCM, G.711, G.711 u-law, G.726
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 100% (condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 3.7 inch
Depth: 9.7 inch
Weight: 31.39 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
