Product Information

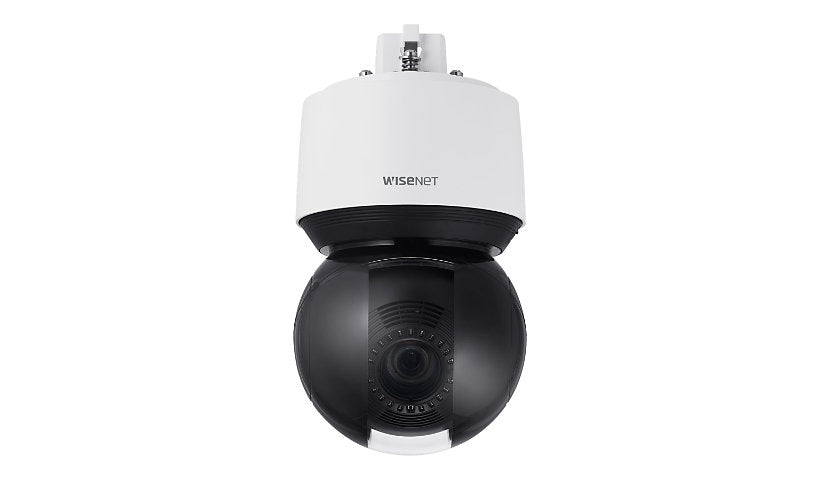

The Hanwha Vision Wisenet Q QNP-6250R is a 2 MP PTZ camera recording 1080p at 60 fps with a 4.44 to 111 mm lens giving 25x optical zoom and autofocus. It pans at up to 700 degrees per second, has IR up to 328 ft, a built in gyroscope, defog, image stabilization and WiseStream II, and runs on PoE+ Class 4 at 25.5 W. Waterproof.
Key Features
- 2 MP, 1080p at 60 fps
- 25x optical zoom
- IR up to 328 ft
- Pan up to 700 deg/s
- Gyroscope, defog, DIS
- PoE+ Class 4, waterproof
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNP-6250R
Packaged Quantity: 1
Color: Black, RAL 9003, White
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Features: Auto white balance, Backlight Compensation (BLC), Built-in gyroscope, Constant Bit Rate (CBR), Defog, Digital Image Stabilization (DIS), Directional Detection, Gain Control, Highlight Compensation (HLC), Image flip, Image mirror, Intelligent analytics, IP address filtering, Motion Detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, PIM-SM, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE Plus Class 4
Power Consumption Operational: 25.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 1024 megabyte
Flash Memory Installed: 256 megabyte
Technical Information
Angular Field of View (H, Max, Degree): 64.66
Angular Field of View (V, Max, Degree): 38.08
Focus Modes: Automatic
Infrared Distance: 328 ft
Infrared LEDs: Yes
Auto Iris Control: DC
Max Focal Length: 111 millimetre
Optical Zoom: 25
Video Capture: 1920 x 1080 @ 60 fps
Digital Zoom: 32
Max Panning Speed (degree/sec): 700
Max Tilting Speed (degree/sec): 300
Tilt: -20 to +90
Motion Detection: Yes
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 2.99
Angular Field of View (V, Min, Degree): 1.68
Camera Iris: Auto iris
Min Focus Distance: 5 ft
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.05 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-3.9
Min Focal Length: 4.44 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 60 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 2 second (time unit)
Focal Length Control: Motorized zoom
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
Physical Characteristics
Protection: Waterproof
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 11.5 inch
Width: 6.2 inch
Depth: 6.2 inch
Weight: 6.83 lbs
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
