Product Information

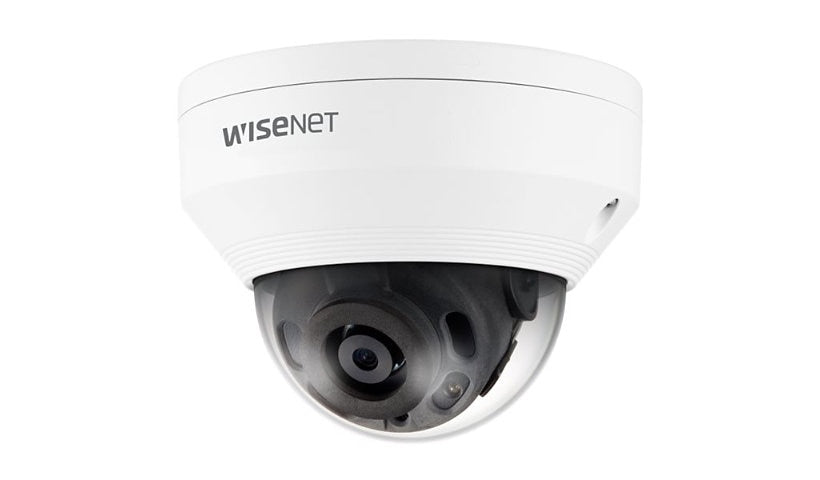

The Hanwha Vision Wisenet Q QNV-6022R1 is a 2 MP outdoor vandal proof dome recording 1080p at 30 fps through a 4 mm F1.6 lens with an 87.6 degree view. It has IR up to 82 ft, Hallway View, LDC, defocus detection, audio in, composite out and alarm I/O, and runs on 12 V DC or PoE Class 3 at 7.4 W. White.
Key Features
- 2 MP, 1080p at 30 fps
- 4 mm, 87.6 degree view
- IR up to 82 ft
- Hallway View, LDC
- Composite out, alarm I/O
- 12 V DC or PoE Class 3
Product Information
Brand: Hanwha Techwin
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNV-6022R1
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Hallway View, Handover, Image flip, Image mirror, Infrared cut filter, IP address filtering, Lens Distortion Compensation (LDC), Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Virtual Line detection, Wide Dynamic Range (WDR), WiseStream II support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: Audio line-in/microphone, Composite video, LAN/power - RJ-45
Power
Low Voltage Power: DC 12 V / PoE Class 3
Power Consumption Operational: 7.4 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
Technical Information
Infrared Distance: 82 ft
Infrared LEDs: Yes
Video Signals: Composite video
Angular Field of View (D, Min, Degree): 104.5
Sensor Pixels Effective (H): 1920
Sensor Pixels Effective (V): 1080
Alarm Input Quantity: 1
Alarm Output Quantity: 1
Video Capture: 1920 x 1080 @ 30 fps
Tilt: 0 to 67
Motion Detection: Yes
Panning Range (degree): 0 to 350
Angular Field of View (H, Min, Degree): 87.6
Angular Field of View (V, Min, Degree): 46.4
Minimum Illumination: 0 lux - B&W - infrared LEDs on, 0.1 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 2,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 4 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 1920 x 1080
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 90%
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Dustproof / waterproof / vandal-proof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.6 inch
Width: 4.7 inch
Depth: 4.7 inch
Weight: 17.99 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
