Product Information

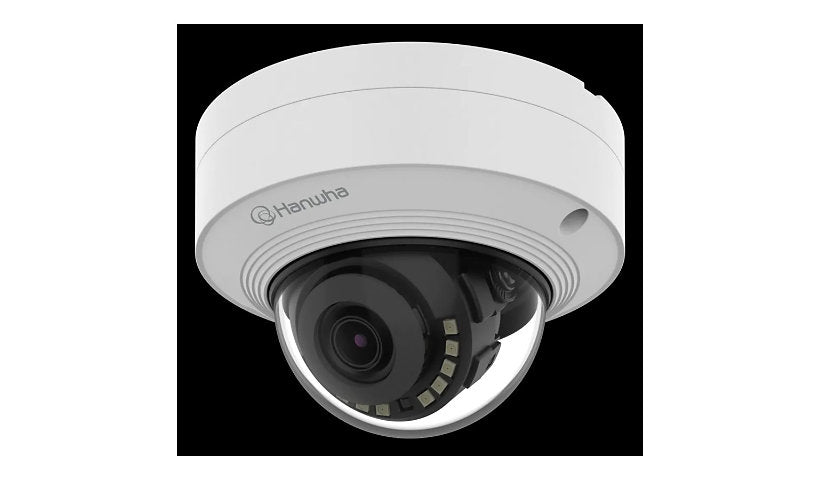

The Hanwha Vision Wisenet Q QNV-C8011R is a 5 MP mini dome recording 2592 x 1944 at 30 fps through a 3 mm F1.6 M12 lens with a 100 degree view. AI object detection helps filter false alerts from foliage and lighting changes, with IR up to 66 ft, and it runs on 12 V DC or PoE Class 3 at 8.5 W. White.
Key Features
- 5 MP, 2592 x 1944
- 3 mm, 100 degree view
- AI object detection
- IR up to 66 ft
- Aluminum housing
- 12 V DC or PoE Class 3
Product Information
Brand: Hanwha Vision
Manufacturer: Hanwha
Product Line: Hanwha Vision WiseNet Q
Model: QNV-C8011R
Packaged Quantity: 1
Color: RAL 9003, White
Color Category: White
Network and Communication
Connectivity Technology: Wired
Features: 355° rotation, Adjustable gain control, Aluminum housing, Anti-flicker, Appearing / disappearing detection, Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Digest authentication, DORI coverage, Entrance / exit detection, Firmware encryption, Hallway View, Hard-coated dome, Heat Map, Image flip, Image mirror, Intrusion detection, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Queue management, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR) V, Secure Boot, Signed firmware, Smart Codec, Tamper-detection, Unicast Streaming, Variable Bit Rate (VBR), Vehicle counting, Vehicle Detection, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream II support, WiseStream III support
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX
Protocols: ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Ports: LAN/power, USB - Micro-USB Type B
Power
Low Voltage Power: DC 12 V / PoE Class 3
Power Consumption Operational: 8.5 watt
Memory and Processor
Memory Cards Supported: microSD Card, microSDHC Card, microSDXC Card
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Focus Modes: Fixed focus
Infrared Distance: 66 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 129
Sensor Pixels Effective (H): 2592
Sensor Pixels Effective (V): 1944
Tilt: -35 to +70
Motion Detection: Yes
Panning Range (degree): 0 to 350
Angular Field of View (H, Min, Degree): 100
Angular Field of View (V, Min, Degree): 73
Camera Iris: Fixed iris
Lens Mount: M12 mount
Min Focus Distance: 19.7 inch
Minimum Illumination: 0 lux - infrared LEDs on, 0.003 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.03 lux - color - F1.6 - shutter 1/30 sec
Total Pixels: 5,000,000 pixels
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6
Min Focal Length: 3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 2592 x 1944, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate: 30 frames per second
Shutter Speed (Max): 1/12000 second (time unit)
Shutter Speed (Min): 1/5 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264, H.265, MJPEG
Video Input: Color
Touchscreen: No
Max Video Resolution: 2592 x 1944
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 0 - 95% RH
Physical Characteristics
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3 inch
Width: 4.3 inch
Depth: 4.3 inch
Weight: 18.41 ounce
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
